Fully Automatic Strapping Machine

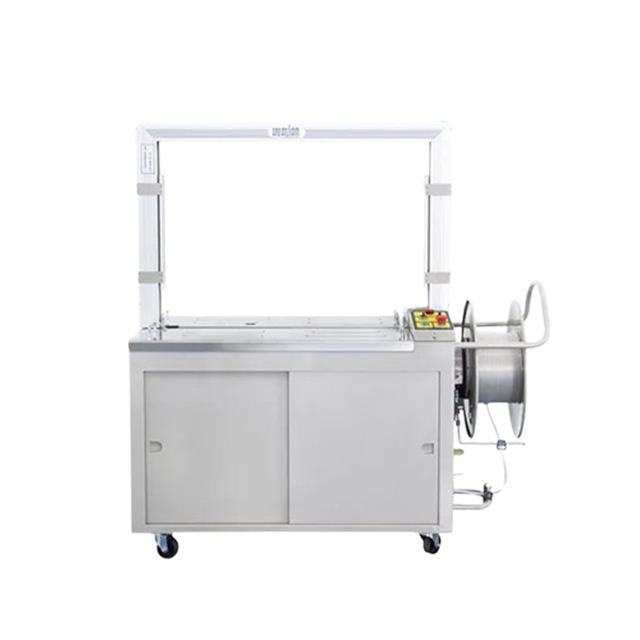

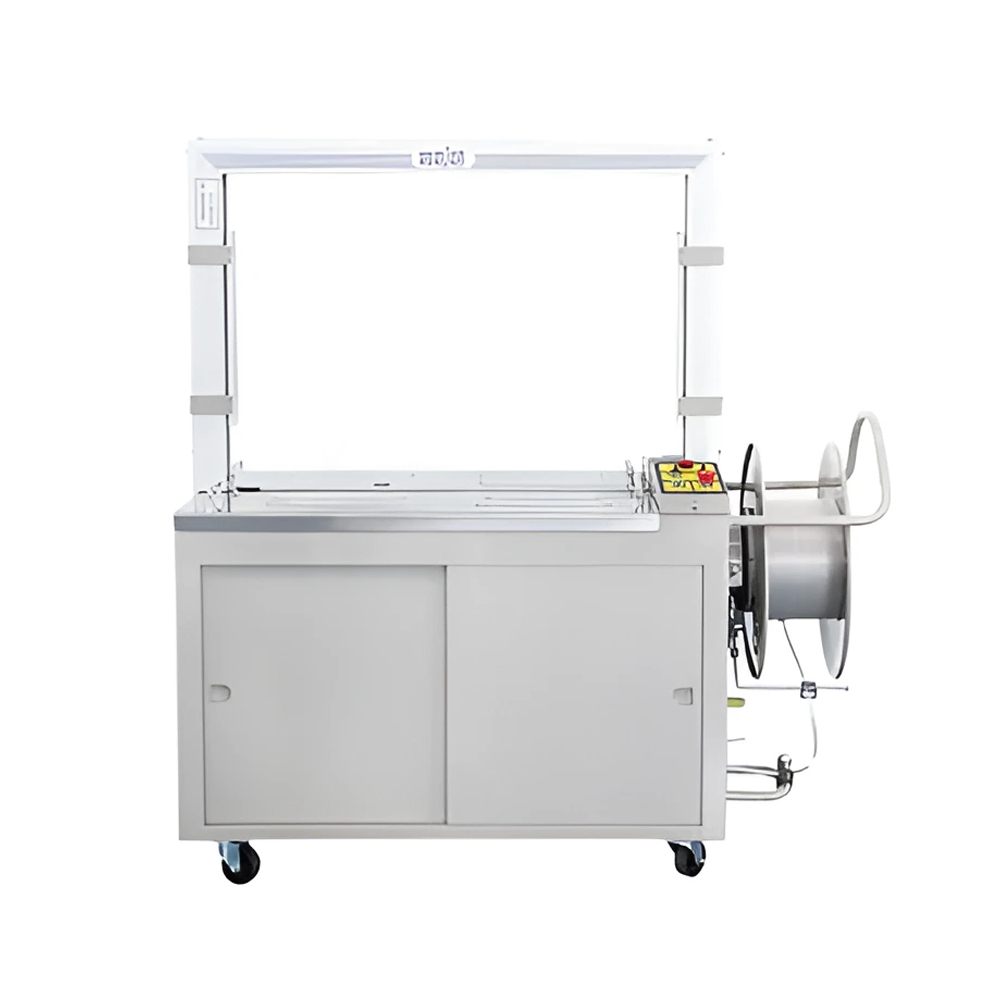

Automatic Strapping Machine Offline Hualian Make
Technical Specification:
| Model | GPS 101 FH |
| Max.Strap Size (mm) | 850 x 600 |
| Min. Strap Size (mm) | 80x50 |
| Strapping Speed (seconds) | 2 |
| Strap Width (mm) | 09-Dec |
| Strap Force (Newton) | 25 - 700 |
| Working Table Height (mm) | 830 |
| Power Source (V/Hz) Three Phase | 440 / 50, 0.1.2HP |
| External Dimension (mm) | 1370x600x1515 |
| Weight (kg) | 235 |

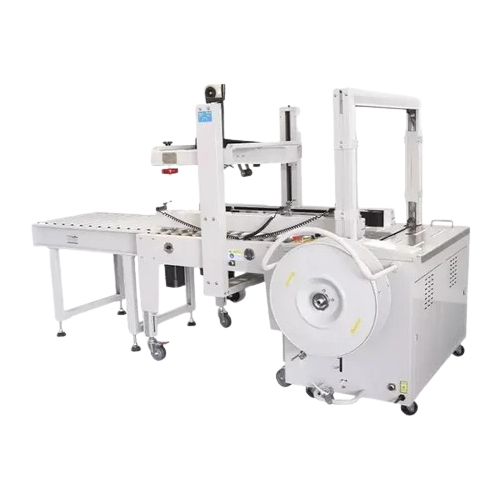

Automatic Strapping and Taping Machine Combo Hualian Make
Technical Specification:
| Model | GPS 102 FTC H |
| Voltage (V/Hz) | AC 380/50 220/50 110/60 |
| Gross Power (W) | 1050 |
| Max. Carton Size (L× W×H) (mm) | 600×500×500 |
| Min. Carton Size (L× W×H) (mm) | 300×130×180 |
| Speed (m/min) | 16 |
| Productive Capacity (pcs/h) | 600 |
| Height of Table (mm) | 750 |
| Adhesive Tape (mm) | BOPP, Water-free adhesive tape，PVC adhesive tape, width 48、60 - 76mm（Optional） |
| Available Strapping Belt (mm) | plastic strapping belt，width 9~15 thickness 0.5~1.1 |
| External Dimensions (L×W×H) (mm) | 2650×1420×1565 |
| Net Weight (kg) | 385 |

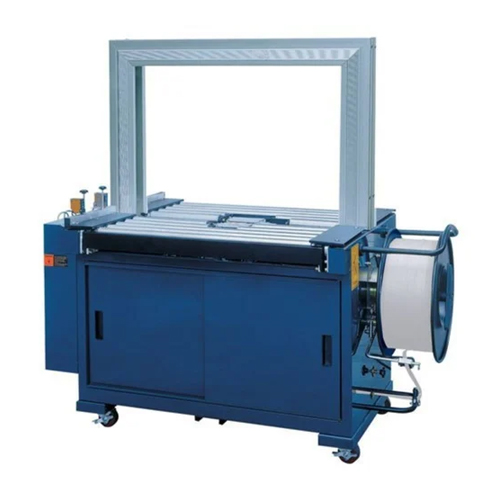

Automatic Strapping Machine Online Chali Make Taiwan
Technical Specification:
| Model | GPS 101FF (Online) |
| Max. Strap Size (mm) | W850 x H600mm |
| Min. Strap Size (mm) | W200 x H30 |
| Strapping Speed (seconds) | 2 .15 |
| Strap Width (mm) | 9 OR 12 |
| Strap Force (Newton) | 25 - 700 |
| Working Table Height (mm) | 830 |
| Power Source (V/Hz) | 440 / 50, 0.1.2HP |
| Power (W) | 1050 |
| External Dimension (mm) | L1645 x W670 x 1535 |
| Weight (kg) | 300 |

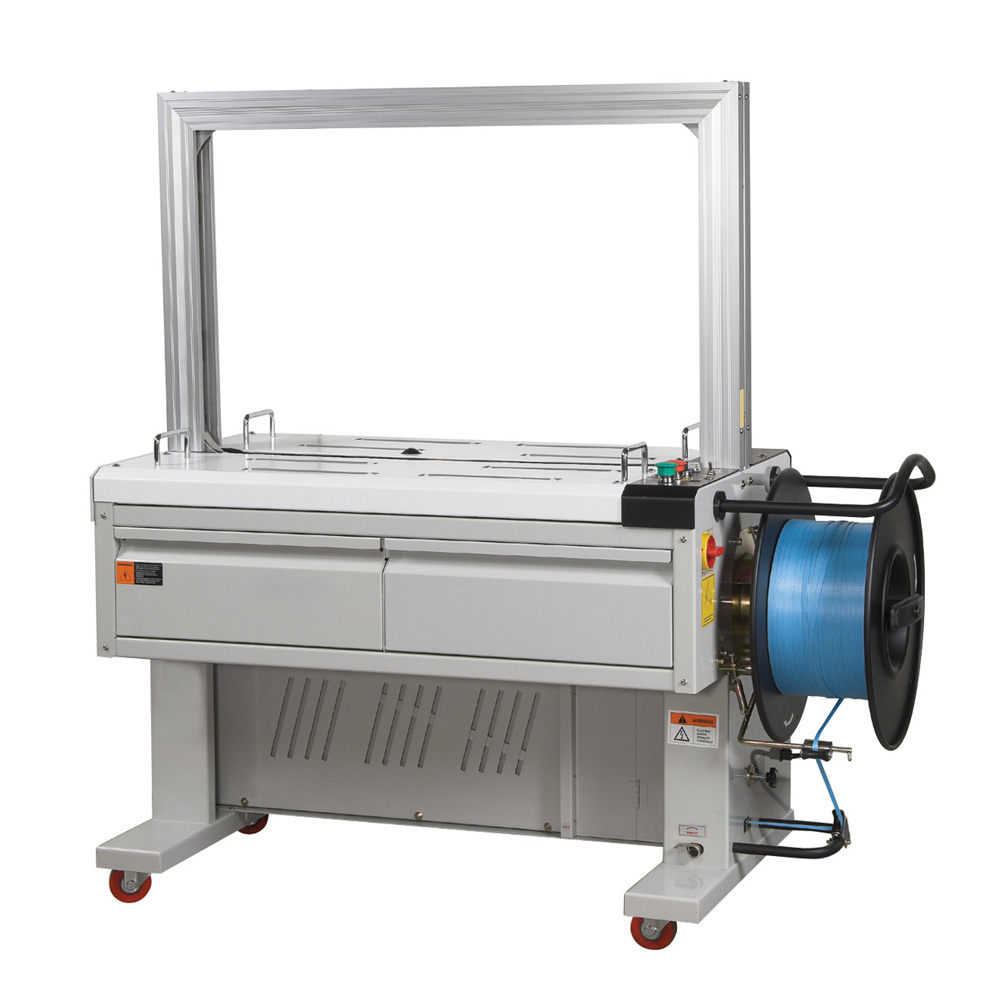

Automatic Strapping Machine Offline Chali Make Taiwan
Technical Specification:
| Model | GPS 101F |
| Max. Strap Size (mm) | W850 x H600mm |
| Min. Strap Size (mm) | W100 x H30mm |
| Strapping Speed (seconds) | 2 |
| Strap Width (mm) | 12 |
| Strap Force (Newton) | 25 - 700 |
| Working Table Height (mm) | 830 |
| Power Source (V/Hz) | 440 / 50, 0.1.2HP 3 ph |
| Power (W) | 1500 |
| External Dimension (mm) | L1440 x W640 x H1517mm |
| Weight (kg) | 255 |

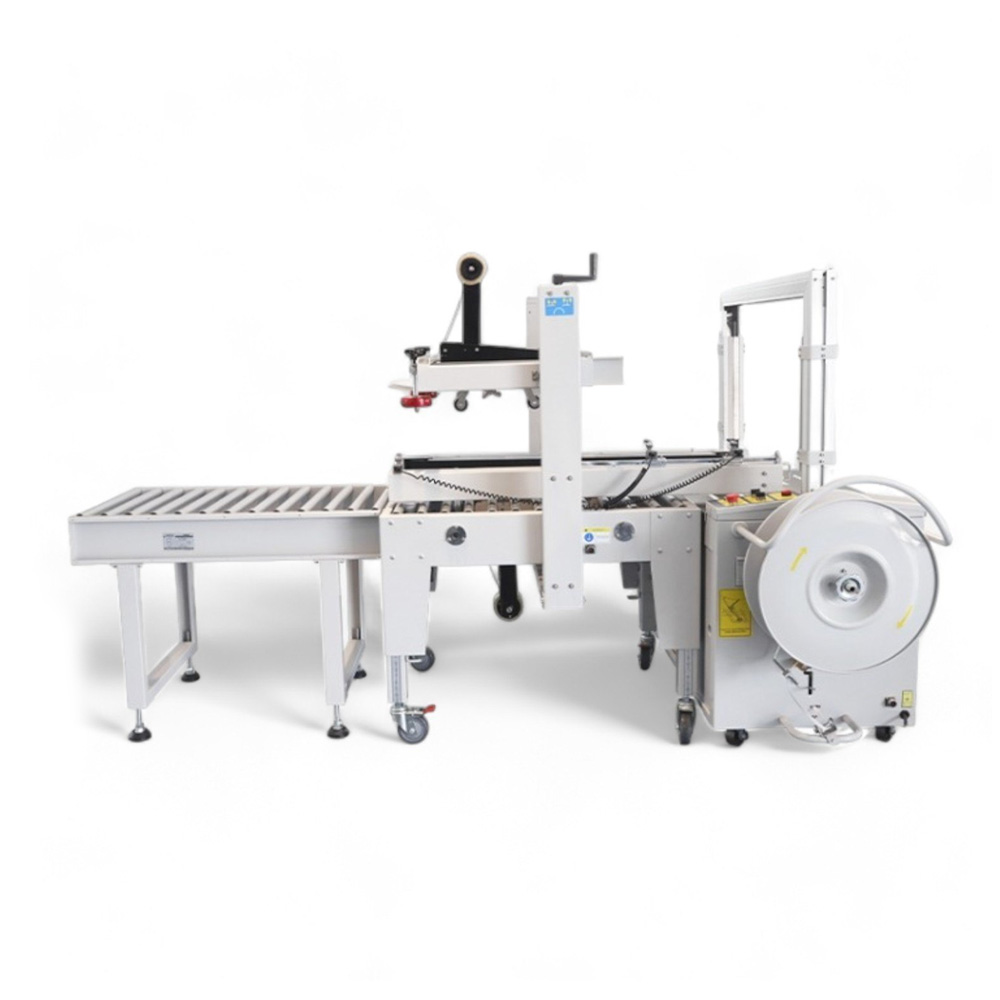

Automatic Strapping and Taping Machine Combo Chali Make Taiwan
Technical Specification:
| Model | GPS 102 FTC |
| Power Supply | 1 Phase 110V/220V/240V |
| Packing Size | Max.: L∞ x W500 x H500 mm Min.: L150 x W135 x H130 mm |
| Tape Width | 50 mm (2") or 76 mm (3") |
| Working Table Height | 570~770 mm (Adjustable) |
| Sealing Capacity | 20 Cartons per minute (Carton: L500 mm, Power: 60 HZ) |
| Dimensions | L1373 x W900 x H1375 mm |
Automatic Strapping Machine GPS - 85E (Standard) Chali Taiwan
Technical Specification:
| Model | GPS - 85 E |
| Arch Size | 850W x 600H mm (Standard) |
| Strap Cycle Speed | 28 Cycles / 60hz / per Min. 26 Cycles / 50hz / per Min. |
| Tension Strength | 70Kgs / Max. |
| Table Height | 810mm |
| Strap Width | 9~15.5mm |
| Sealing Method | Heat Sealing |
| Power Supply | 110/220V 50/60HZ 1PH. 220/380V 50/60HZ 3PH |
| Dimensions | 1400L x 640W x 1475H mm |
| Packing Dimension | 1450L x 830W x 1100H mm |
| Machine Weight | 220Kgs |
| Gross Weight | 270Kgs |

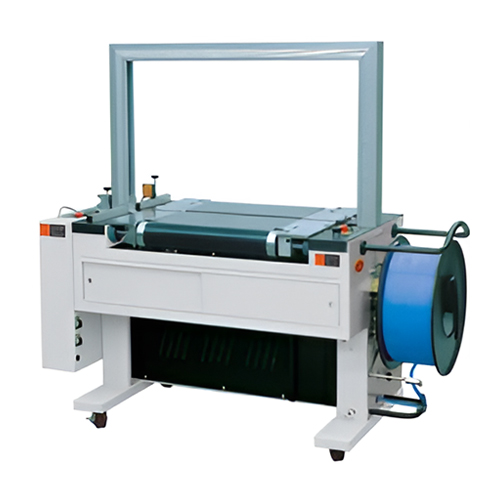

Automatic Strapping Machine GPS - 85PBU (Powerized Belt) Chali Taiwan
Technical Specification:
| Model | GPS - 85PBU |
| Arch Size | 1050W x 600H mm (Optional) |
| Tension Strength | 70Kgs / Max. |
| Table Height | 810mm |
| Strap Width | 9~15.5mm |
| Sealing Method | Heat Sealing |
| Cylinder | Inner Diameter: φ40 mm |
| Pressure | 5 kg / cm2 |
| Stroke | 550 mm |
| Power Supply | 110/220V 50/60HZ 1PH. 220/380V 50/60HZ 3PH |

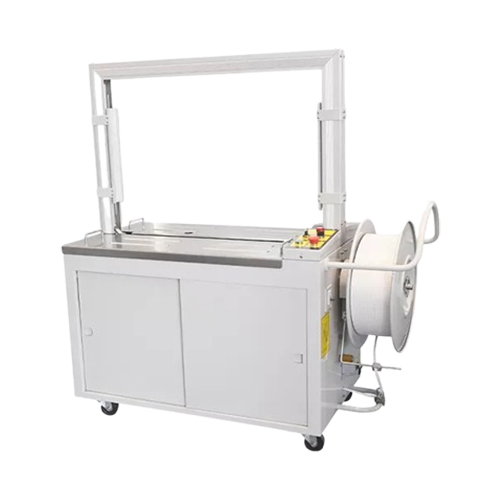

High Speed Automatic Arch Strapping Machine GPS - 8060D
Technical Specification:
| Model | GPS 8060 D |
| Voltage (V/Hz) | AC 380/50 220/60 3Phase |
| Power (W) | 1000 |
| Bundle Size(Maximum)(W×H) (mm) | 700*600/800*500 |
| Strapping Speed (sec/cycle) | ≤2.5 |
| Strapping Force (V/hz) (N) | 25-700 (Adjustable) |
| Height of Table (mm) | 750 |
| Suitable For Plastic Bag(mm) | Machine Packaging Hand Width 9-15, thickness 0.5-1.1 |
| External Dimensions (L×W× H)(mm) | 1400×620×1470 |
| Net Weight (kg) | 190 |
| Max.Loading Weight(kg) | 30 |

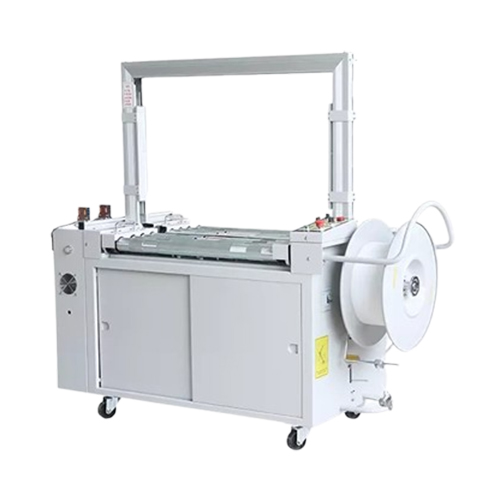

High Speed Automatic Arch PP Strapping Machine GPS - KZW8060/D
Technical Specification:
| Model | GPS - KZW8060/D |
| Voltage (V/Hz) | AC 380/50 220/60 3Phase |
| Power (W) | 1100 |
| Max. Strapping Size (L×H) (mm) | 740*600 |
| Strapping Speed (sec/cycle) | ≤2.5 |
| Strapping Force (V/hz) (N) | 25-700 (Adjustable) |
| Height of Table (mm) | 750 |
| Width of Strap Used (mm) | Plastic strap 9-15, thickness 0.5-1.1 |
| External Dimensions (L×W× H)(mm) | 1580×620×1470 |
| Net Weight (kg) | 300 |
| Max.Loading Weight(kg) | 50 |

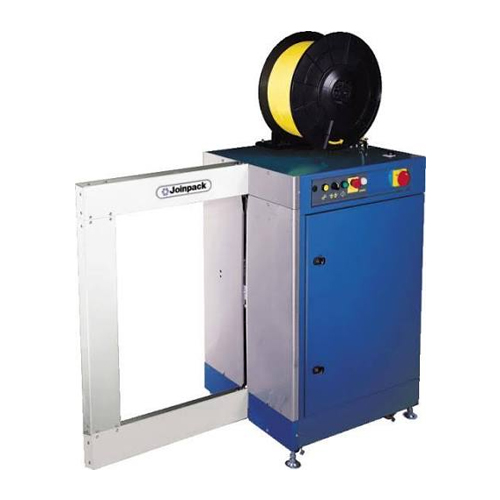

Automatic Strapping Machine with Side Seal GPS - 8001200
Technical Specification:
| Model | GPS - 80120 |
| Voltage (V/Hz) | AC 380/50 220/60 3Phase |
| Power (W) | 850 |
| Max. Strapping Size (L×H) (mm) | 800×1200 |
| Strapping Speed (sec/cycle) | ≤2.6 |
| Strapping Force (V/hz) (N) | 25-750 (Adjustable) |
| Width of Strap Used (mm) | Plastic strap 9-15, thickness 0.5-1.1 |
| External Dimensions (L×W× H)(mm) | 1750×650×1790 |
| Net Weight (kg) | 350 |

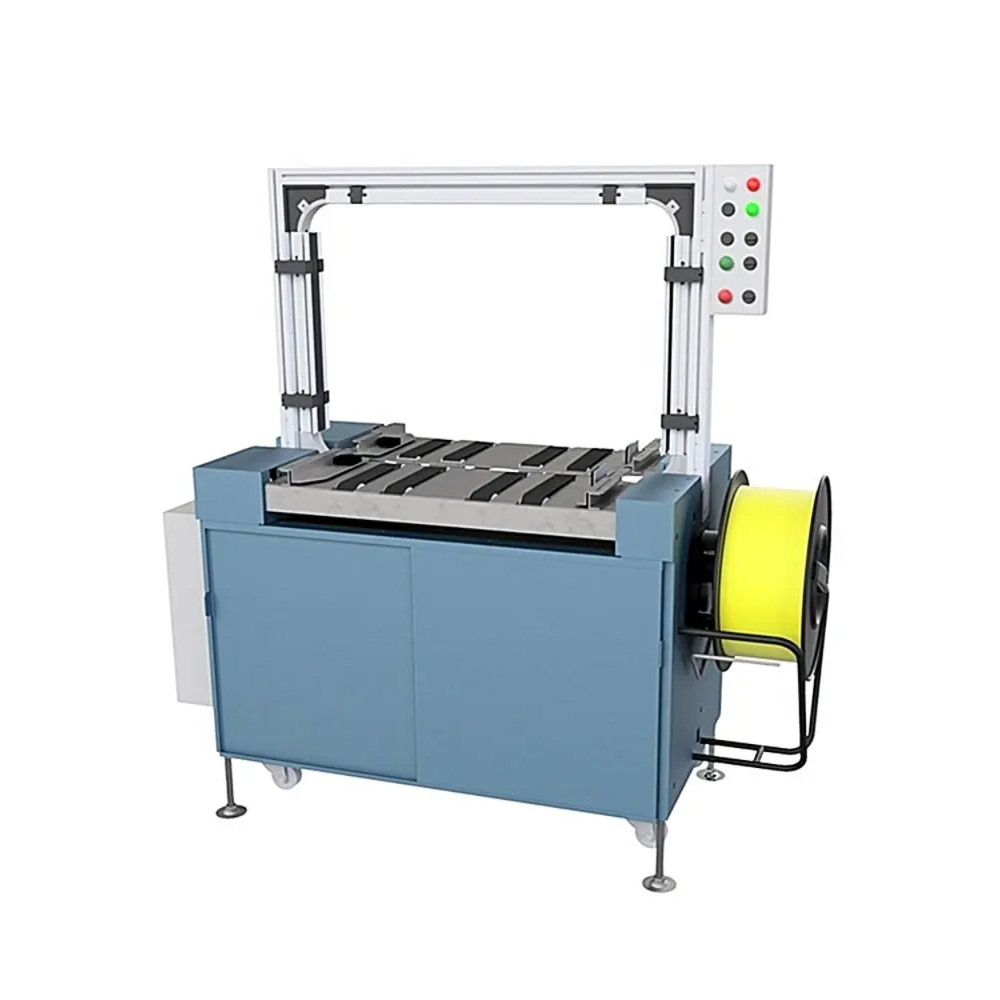

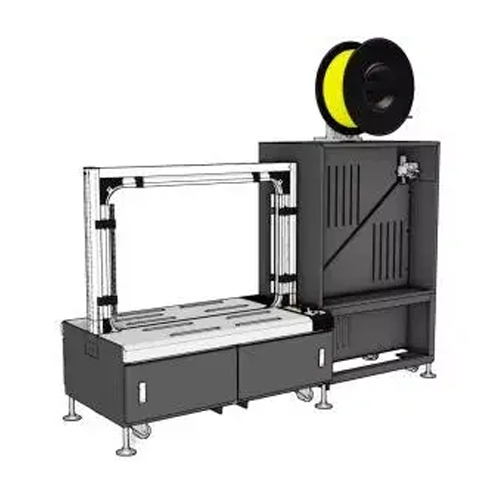

Aluminum Arch Fully Automatic Strapping Machine With Belt Table Top (PWI)
Technical Specification:
| Model | GPS - 0860CS2B |
| Power | 3Ø 220V/380V/415V/440V, 50/60Hz |
| Strapping Head | Standard Type |
| Standard Arch Size(WxH) | 850 x 600 (mm) 33.5 x 23.6 (in) |
| PP Strap Width(mm) | 9,12,15,19 |
| Strapping Tension | 0~70 (kg) 0~154.3 (lb) |
| Strapping Speed | 25 strap/min |
| Max. Load | 20 (kg) 44 (lb) |
| Working Height | 810 (mm) 31.9 (in) |
| Machine Size(LxWxH) | 1595 x 760 x 1535 (mm) 62.8 x 29.9 x 60.4 (in) |

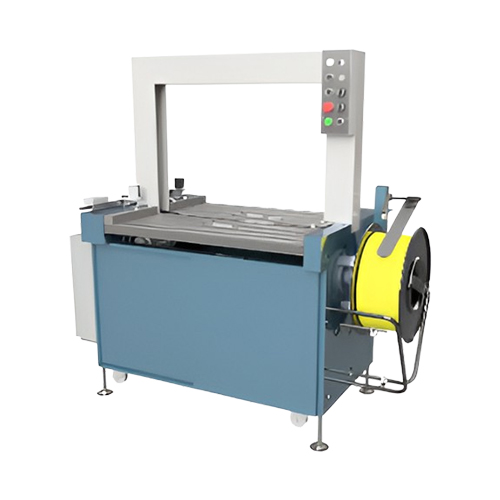

Fully Automatic Strapping Machine with Roller Conveyor GPS- 0860AS2R
Technical Specification:
| Model | GPS - 0860AS2R |
| Power Supply | 3Phase , 220/380/415/440V , 50/60Hz |
| Strapping Head | Standard |
| Strap Arch Size (WxH) | 850 x 600 (mm) 33.5 x 23.6 (in) |
| PP Strap Width(mm) | 9,12,15,19 |
| Tension Range | 0~70 (kg) 0~154.3 (lb) |
| Capacity | 2.4sec/Cycle, 25cycle/Minute |
| Load | 20 (kg) 44 (lb) |
| Bench Height | 810 (mm) 31.9 (in) |
| Machine Size (LxWxH) | 1094 x 640 x 1517 (mm) 43 x 25.2 x 59.7 (in) |

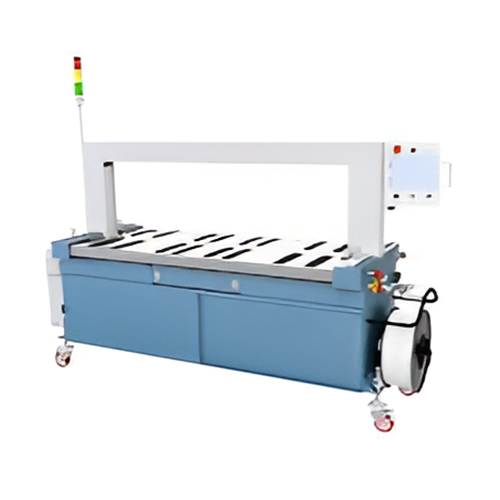

Fully automatic Power Belt Table Top Strapping Machine (PWI)
Technical Specification:
| Model | GPS-4850DUATS1B+P |
| Power Supply | 1 φ , 110/220,50/60Hz (Other upon request) |
| Arch Frame Size (WxH) | 1650 X 500 (mm) 65 x 15.7 (in) |
| Strapping Size (WxL) | W 200 ~ 1550 x L > 250 (mm) |
| Tensioning Range | ~30 (kg) ~66 (lb) |
| Capacity (include conyeyor) | Single Strap : 22 bundle/min Double Strap : 13 bundle/min |
| Working Height | 810 (mm) ~ 950 (mm) 34.2~37.4 (in) |
| Loading Weight |
< 40 (kg), 88.1(lb) |
| Product Height (H) | 30 ~ 450 (mm) |
| Control Type | HMI, PLC and PCB driver |
| Conveyor Speed Range | 10 ~ 35M/min( Inverter control) |
| Strap Coil Size | Other : 150 x 0.5 (mm)(6") Standard : 200 x 0.5 (mm)(8") Coil height : 180~190 (mm) |

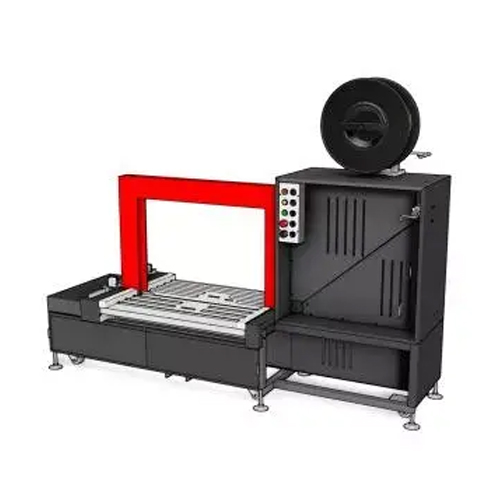

Low Profile Fully Automatic Strapping Machine (PWI)
Technical Specification:
| Model | GPS- 0860LS2R |
| Power | 3Ø 220V/380V/415V/440V, 50/60Hz |
| Strapping Head | Standard Type |
| Standard Arch Size (WxH) | 850 x 600 (mm) 33.5 x 23.6 (in) |
| PP Strap Width (mm) | 9,12,15,19 |
| Strapping Tension | 0~70 (kg) 0~154.3 (lb) |
| Strapping Speed | 25 strap/min |
| Max. Load | 100 (kg) 220 (lb) |
| Working Height | 450 (mm) 17.7 (in) |
| Machine Size (LxWxH) | 2260 x 760 x 1774 (mm) 88.9 x 29.9 x 69.8 (in) |

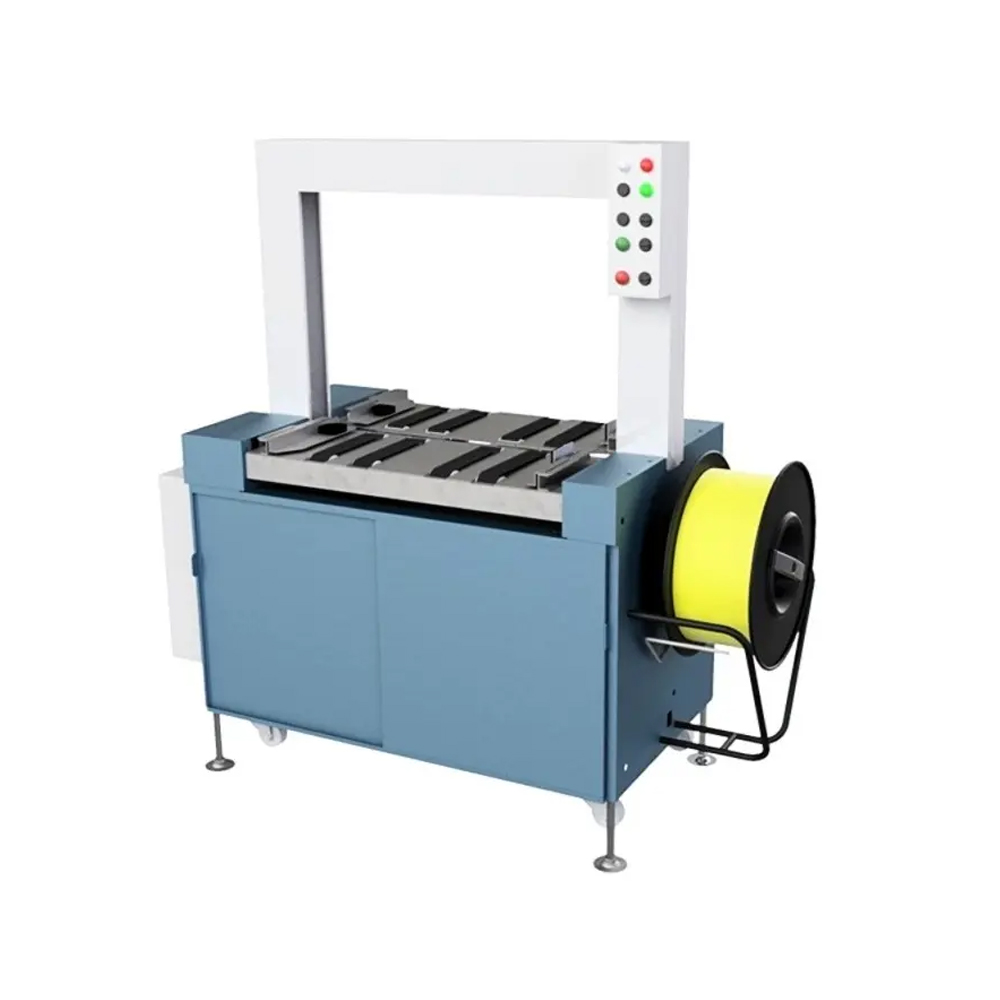

Fully Automatic Strapping Machine GPS - 0860AS2B (PWI)
Technical Specification:
| Model | GPS - 0860AS2B |
| Power | 3Ø 220V/380V/415V/440V, 50/60Hz |
| Strapping Head | Standard Type |
| Standard Arch Size (WxH) | 850 x 600 (mm) 33.5 x 23.6 (in) |
| PP Strap Width(mm) | 9,12,15,19 |
| Strapping Tension | 0~70 (kg) 0~154.3 (lb) |
| Strapping Speed | 25 strap/min |
| Max. Load | 20 (kg) 44 (lb) |
| Working Height | 810 (mm) 31.9 (in) |
| Machine Size (LxWxH) | 1595 x 760 x 1535 (mm) 62.8 x 29.9 x 60.4 (in) |

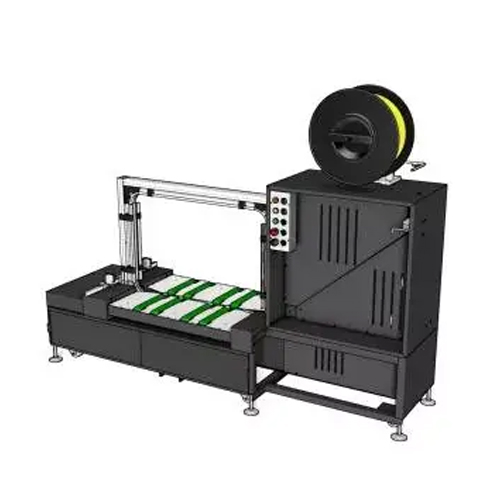

Aluminum Arch Low Profile Fully automatic Strapping Machine with belts Tabletop
Technical Specification:
| Model | GPS - 0860CLS2B |
| Power | 3 Ø, 220/380/415/440V, 50/60 Hz |
| Standard Arch Size (WxH) | 850 x 600 (mm) 33.5 x 23.6 (in) |
| PP Strap Width (mm) | 9,12 ,15,19 |
| Strapping Tension | 0~70 (kg) 0~154.3 (lb) |
| Strapping Speed | 2.4 sec / strap (25 Strap / min) |
| Max Load | 20 (kg) 44 (lb) |
| Working Height | 450 (mm) 17.7 (in) |
| Machine Size(LxWxH) | 2260 x 760 x 1774 (mm) 88.9 x 29.9 x 69.8 (in) |
Aluminum Arch Low Profile Fully-automatic Strapping Machine with Belts Tabletop
Technical Specification:
| Model | GPS - 0860CLS2R |
| Power | 3Ø 220V/380V/415V/440V, 50/60Hz |
| Strapping Head | Standard Type |
| Standard Arch Size (mm)(WxH) | 850 x 600 |
| PP Strap Width (mm) | 9,12,15,19 |
| Strapping Tension(kg) | 0~70 |
| Strapping Speed | 25 strap/min |
| Max. Load(kg) | 100 |
| Working Height(mm) | 450 |
| Machine Size(mm)(LxWxH) | 2260 x 760 x 1774 |

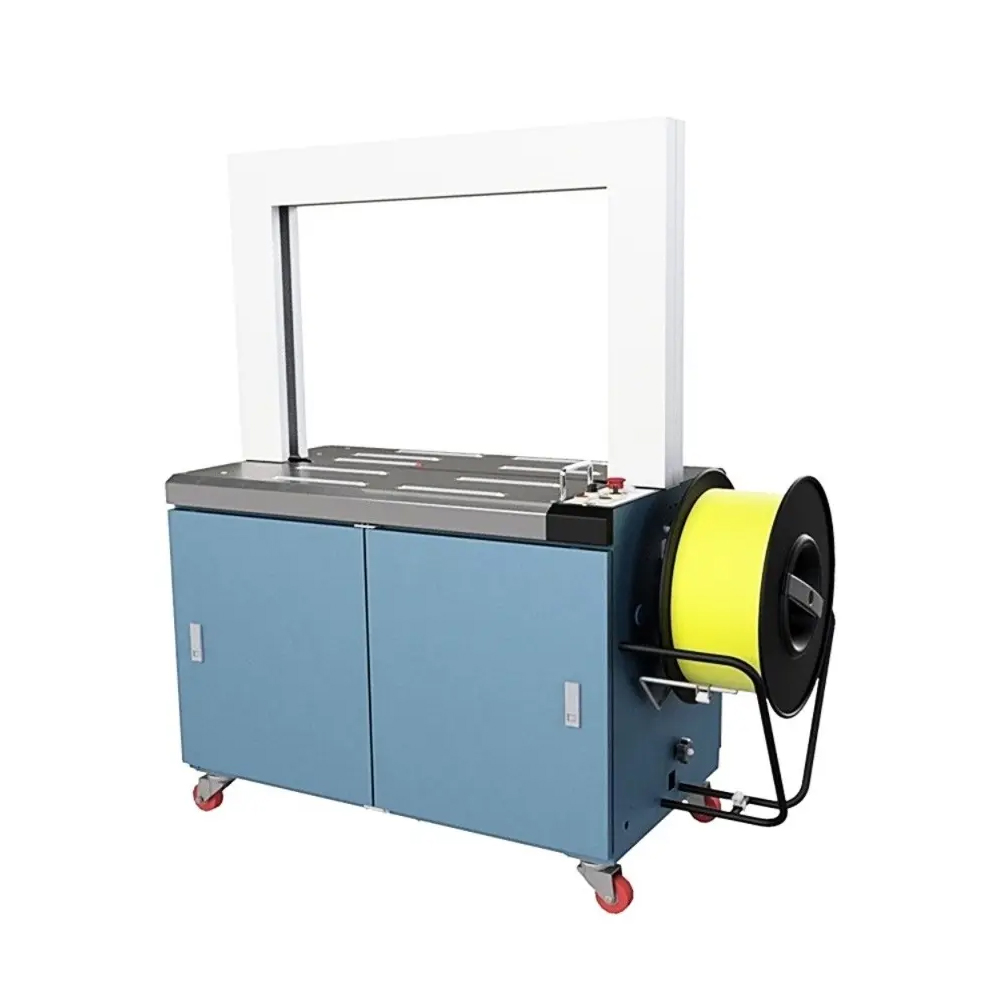

Automatic Strapping Machine GPS 0860A PWI
Technical Specification:
| Model | GPS - 0860A |
| Power Supply | 3 phase , 220/380/415/440V, 50/60Hz |
| Straping Head | Standard Type |
| Arch Size(WxH) | 850 x 600 (mm) 33.5 x 23.6 (in) |
| Strap band Width(mm) | 9,12,15,19 |
| Strapping Tension | 0~70 (kg) 0~154.3 (lb) |
| Strapping Speed | 2.4 sec./ strap (25 strap/min.) |
| Max. Load | 20 (kg) 44 (lb) |
| Working table height | 810 (mm) 31.9 (in) |
| Machine Size(LxWxH) | 1476 x 689 x 1644 (mm) 58.1 x 27.1 x 64.7 (in) |

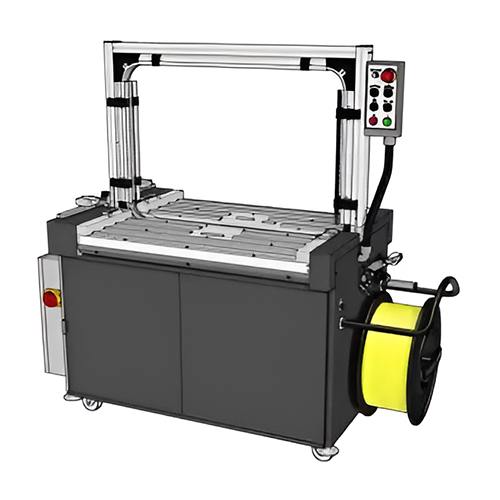

Strap Threading Automatic Strapping Machine (PWI)
Technical Specification:
| Model | GPS - 0860 CAT |
| Power | 3Ø 220V/380V/415V/440V, 50/60Hz |
| Strapping Head | Standard Type |
| Standard Arch Size(WxH) | 850 x 600 (mm) 33.5 x 23.6 (in) |
| PP Strap Width(mm) | 9,12,15,19 |
| Strapping Tension | up to 70 (kg) up to 154.3 (lb) |
| Strapping Speed | up to 28 strap/min |
| Max. Load | 20 (kg) 44 (lb) |
| Working Height | 810 (mm) 31.9 (in) |
| Machine Size(LxWxH) | 1094 x 640 x 1517 (mm) 43.1 x 25.2 x 59.7 (in) |
| Net Weight | 219(kg) 481.8(lbs) |

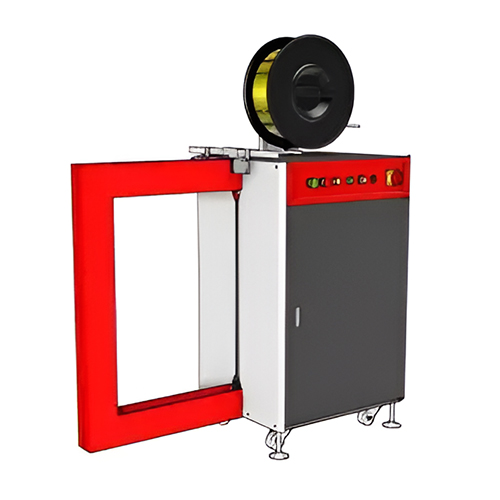

Side Seal Fully automatic Strapping Machine PWI
Technical Specification:
| Model | GPS - 0860YS2 |
| Power Supply | 3 phase , 220/380/415/440V, 50/60Hz |
| Straping Head | Standard Type |
| Arch Size(WxH) | 600 x 850 (mm) 23.6 x 33.5 (in) |
| Strap band Width(mm) | 9,12,15,19 |
| Strapping Tension | 0~70 (kg) 0~154.3 (lb) |
| Strapping Speed | 2.4 sec./ strap (25 strap/min.) |
| Sealing point | 692 (mm) 27.2 (in) |
| Machine Size(LxWxH) | 1425 x 630 x 1724 (mm) 56.1 x 24.8 x 67.9 (in) |

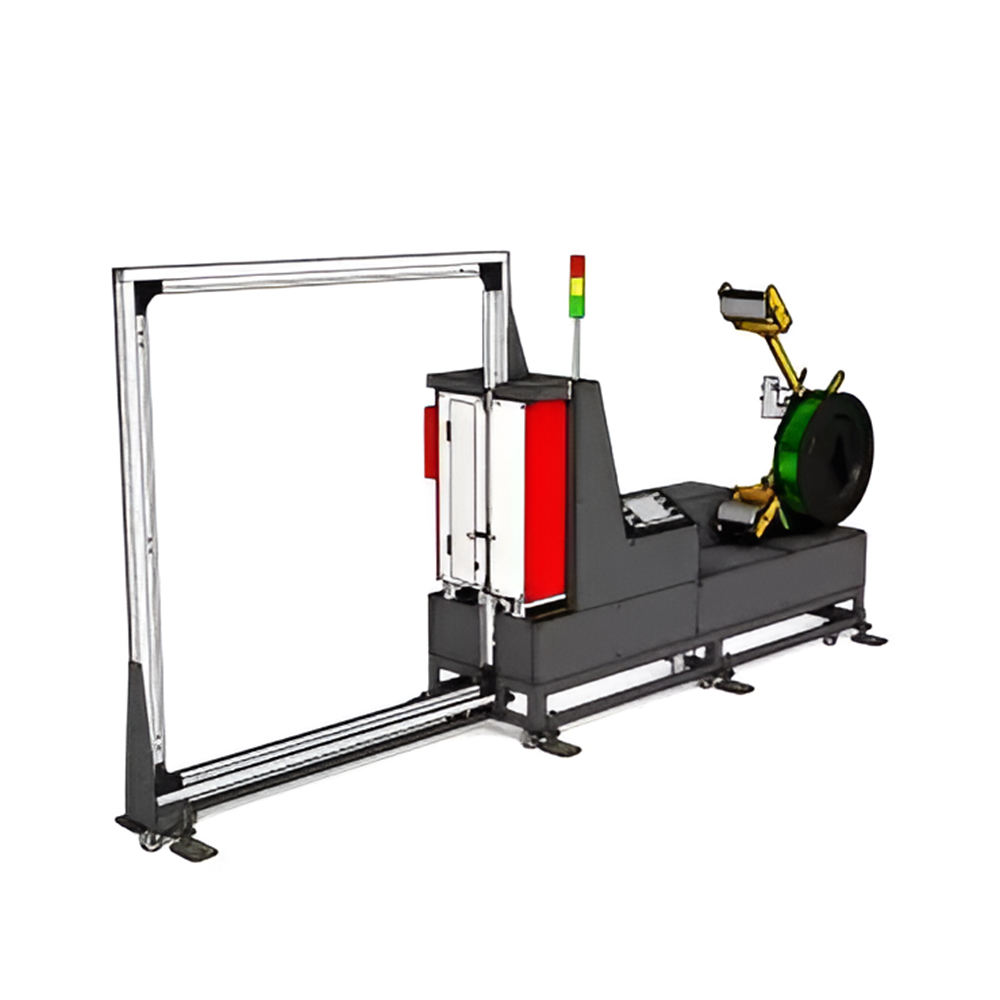

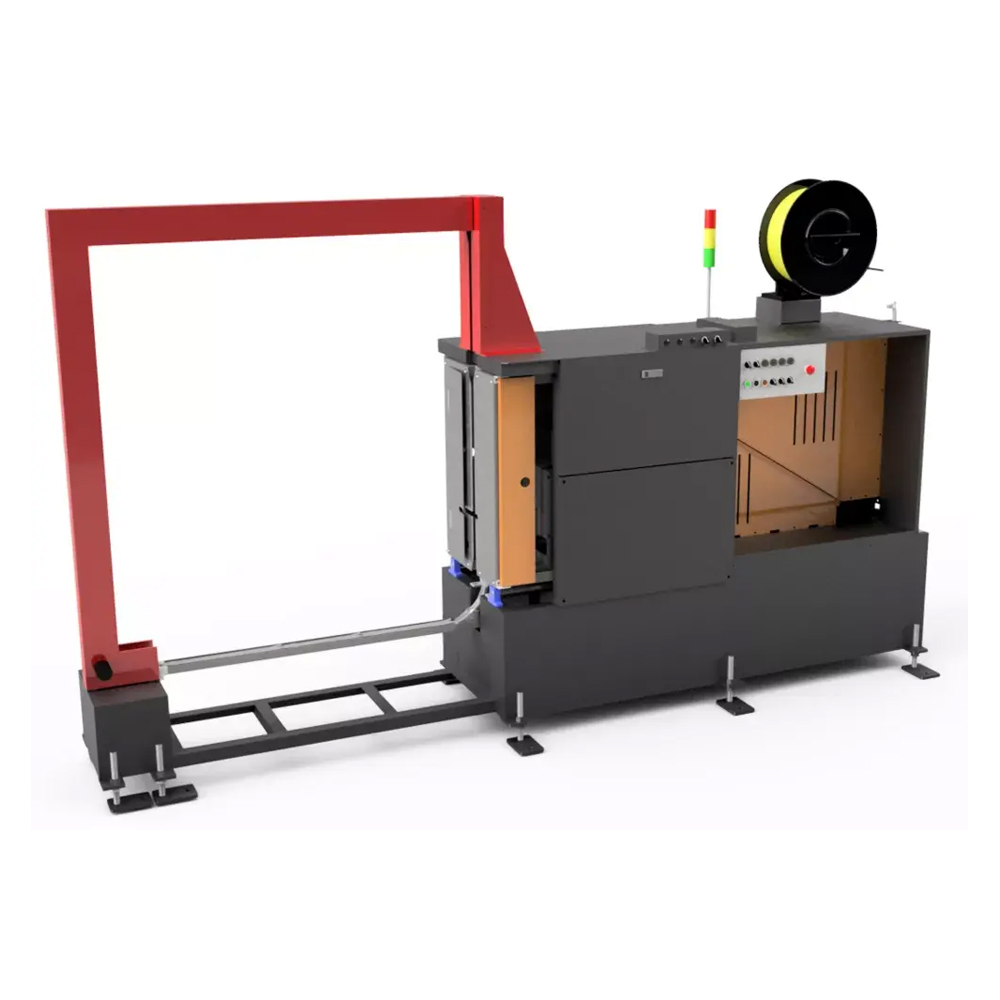

Fully Automatic Side Sealing Pallet Strapping Machine
Technical Specification:
| Model | GPS - YAO |
| Power Supply | 3phase, 220/380/415/440, 50/60Hz |
| Air Supply | 6kgf/cm (137.64L/min.) |
| Strapping Head | Standard |
| Standard Strapping Head Moving Interval (mm) | 250 |
| Standard Arch Size(mm)(WxH) | 1400 x 1450 *Custom Arch Size Available |
| PET Strap Width(mm) | 9,12,15,and 19 x 406(ID) |
| PP Strap Width(mm) | 12,15,and 19 |
| Strapping Tension(Kg) | 0~70 |
| Strapping Speed | 25sec / Strap (exclude convey time) |
| Sealing Method Detection | Electric Heat Seal Strap not in position, No strap, Strap sealing failure. |
| Min. Coneyor Height (mm) | 300 |
| Machine Size(mm)(LxWxH) | 4308x1650x2967 (Standard) |

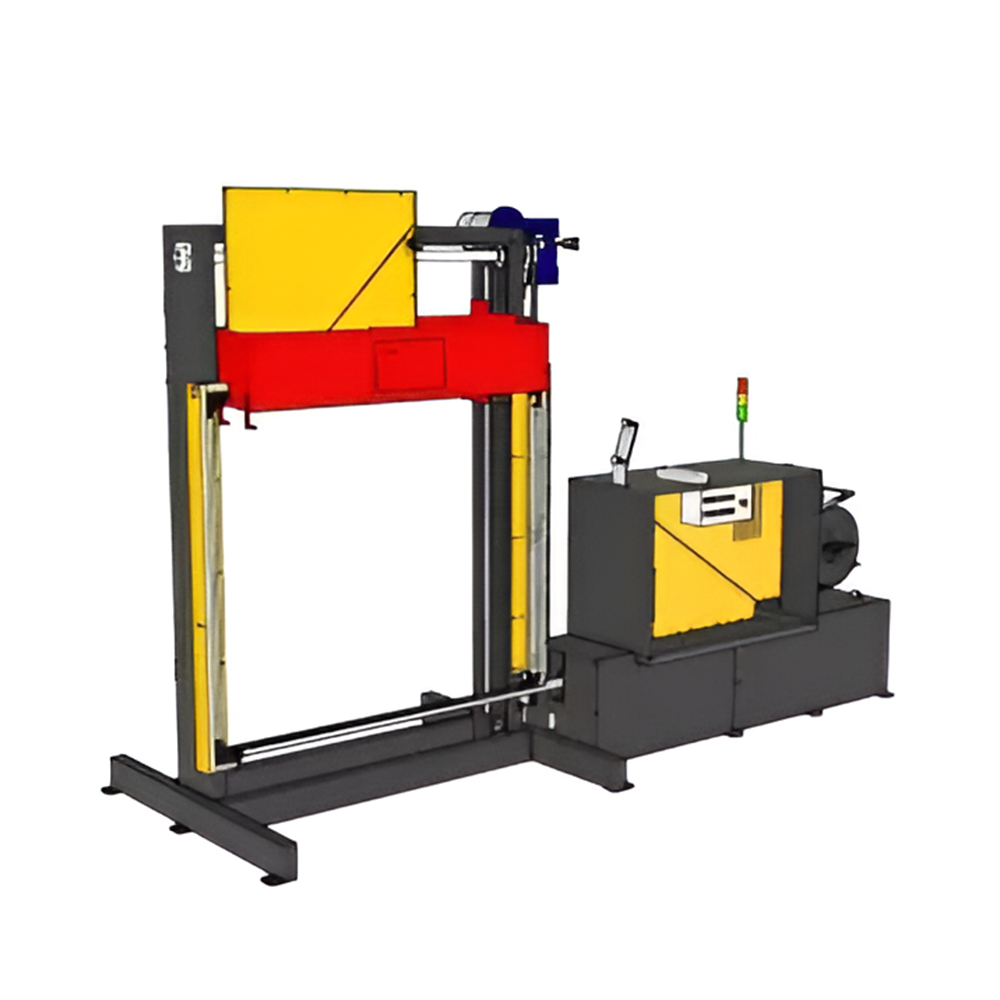

Fully-automatic Top Sealing Pallet Strapping Machine
Technical Specification:
| Model | GPS - YAOV |
| Power Supply | 3phase, 220/380/415/440, 50/60Hz |
| Air Supply | 6kgf/cm (137.64L/min.) |
| Strapping Head | Standard |
| Standard Arch Size (mm)(WxH) | 1750 x 1600 *Custom Arch Size Available |
| PET Strap Width(mm) | 9,12,15,and 19 x 406(ID) |
| PP Strap Width(mm) | 12,15,and 19 |
| Strapping Tension(Kg) | 0~70 |
| Strapping Speed | 20sec/strap (exclude convey time) |
| Sealing Method Detection | Electric Heat Seal Detection for strap not in position Detection for no strap Detection for strap failure |
| Min. Coneyor Height (mm) | 300 |
| Machine Size(mm)(LxWxH) | Stadard size 4150x970x2538 |
Side Sealing Fully Automatic Pallet Strapping Machine PWI
Technical Specification:
| Model | GPS - UYA |
| Power Supply | 3phase, 220/380/415/440, 50/60Hz |
| Air Supply | 6kgf/cm (137.64L/min.) |
| Standard Strapping Head Moving Interval (mm) | 250 |
| Strapping Head | U Series - High Tension |
| Standard Arch Size(mm)(WxH) | 1650x 1600 *Custom Arch Size Available |
| PET Strap Width(mm) | 9,12,15,19 x 406(ID) |
| Strapping Tension(Kg) | 40~400 |
| Strapping Speed | 15sec / Strap (exclude convey time) |
| Sealing Method Detection | Electric Heat Seal Detection for strap not in position Detection for no strap Detection for strap failure |
| Min. Conveyor Height(mm) | 250 |
| Machine Size(mm)(LxWxH) | 4150x728x2060 (Standard) |
| PP strap adjustable tension(Kg) | 40~130(9mm), 40~180(12mm), 40~240(15mm), 40~260(19mm). |
| PET strap adjustable tension(Kg) | 40~200(9mm), 40~250(12mm), 40~350(15mm), 40~400(19mm). |

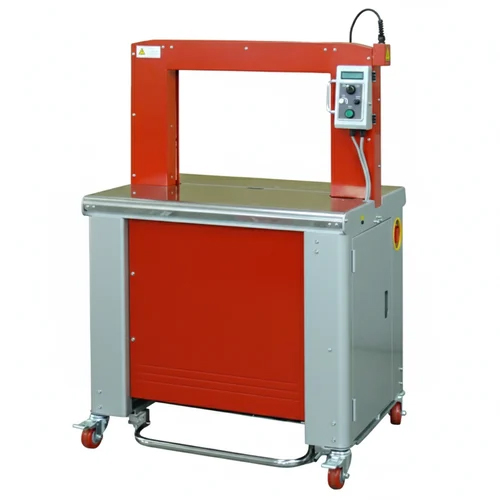

Automatic Strapping Machine Mercury GPS - 702 (Transpak)
Technical Specification:
| Model | GPS - 702 |
| Capacity | Up to 65 cycles/minute (TP-702-59) Up to 60 cycles/minute (TP-702-12) Up to 58 cycles/minute (TP-702-15W) |
| Strap Width | 5 mm, 6 mm, or 9 mm (TP-702-59) 12 mm (TP-702-12) 15 mm (TP-702-15W) |
| Tension Range | 1 to 32 kg (TP-702-59) 1 to 45 kg (TP-702-12, TP-702-15W) * Higher tension is on request |
| Weight | 158 kg (TP-702-59) 167 kg (TP-702-12) 170 kg (TP-702-15W) |
| Electrical Requirements | 110V, 220V, 230V, 240V 50/60Hz 1PH |

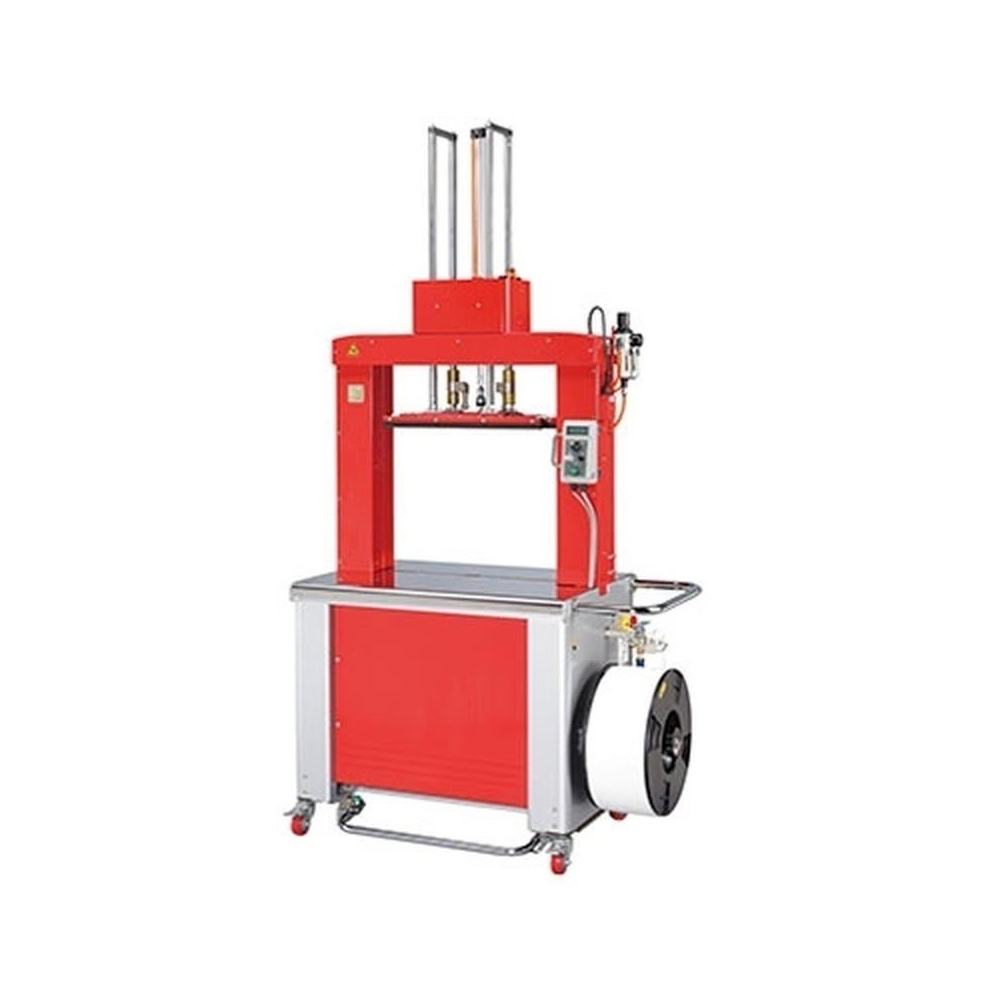

Automatic Strapping Machine with Dual Pneumatic Press GPS-702P
Technical Specification:
| Model | GPS - 702P |
| Capacity | Up to 47 cycles/minute (TP-702P-59) Up to 44 cycles/minute (TP-702P-12) |
| Strap Width | 5 mm, 6 mm, or 9 mm (TP-702P-59) 12 mm (TP-702P-12) |
| Tension Range | 1 to 32 kg (TP-702P-59) 1 to 45 kg (TP-702P-12) * Higher tension is on request |
| Weight | 224 kg (TP-702P-59) 226 kg (TP-702P-12) |
| Electrical Requirements | 110V, 220V, 230V, 240V 50/60Hz 1PH |

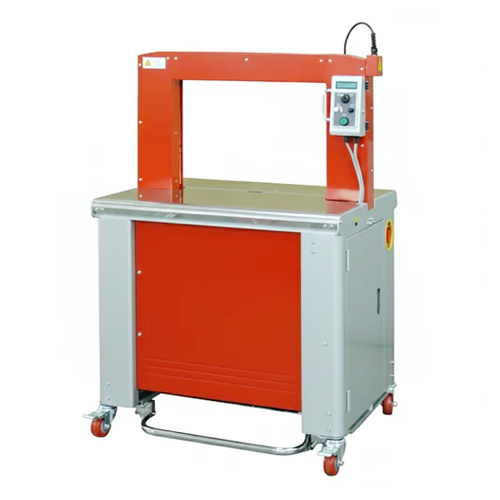

Automatic Strapping Machine Mercury GPS - 702RS for Small or Round Package (Transpak)
Technical Specification:
| Model | GPS - 702RS |
| Capacity | Up to 65 cycles/minute |
| Strap Width | 5 mm, 6 mm, or 9 mm |
| Arch Size | 550 mm (W) x 400 mm (H) |
| Tension Range | 1 - 32 kg |
| Weight | 158 kg |
| Electrical Requirements | 110V, 220V, 230V, 240V 50/60Hz 1PH |

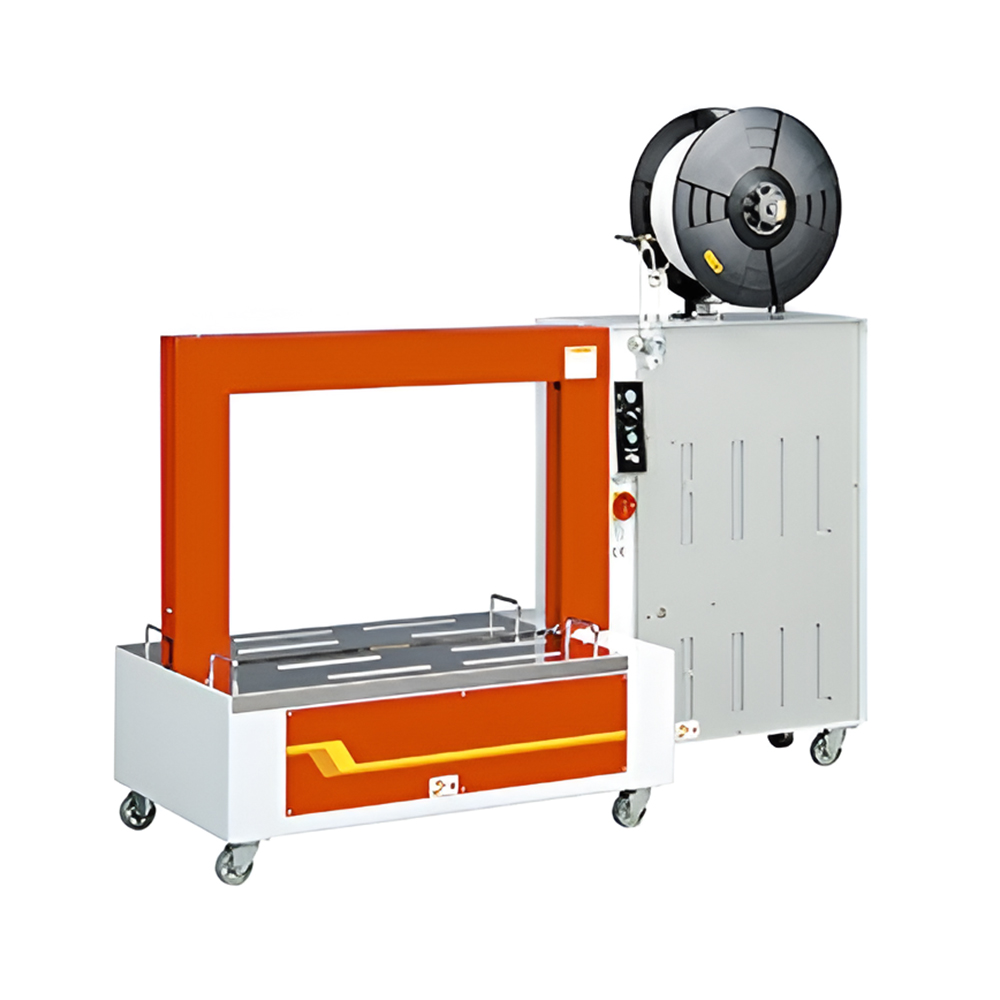

Automatic Strapping Machine GPS - 601 Taurus (Low Table Model) Transpak
Technical Specification:
| Model | GPS - 601L |
| Capacity | Up to 29 cycles/minute |
| Strap Width | 8 mm, 9 mm, or 12 mm |
| Tension Range | 7 - 45 kg *up to 70 kg on request |
| Table Height | 410 mm |
| Weight | 235 kg |
| Electrical Requirements | 110V, 220V, 230V, 240V 50/60Hz 1PH 220V, 380V, 400V, 415V 50/60Hz 3PH |

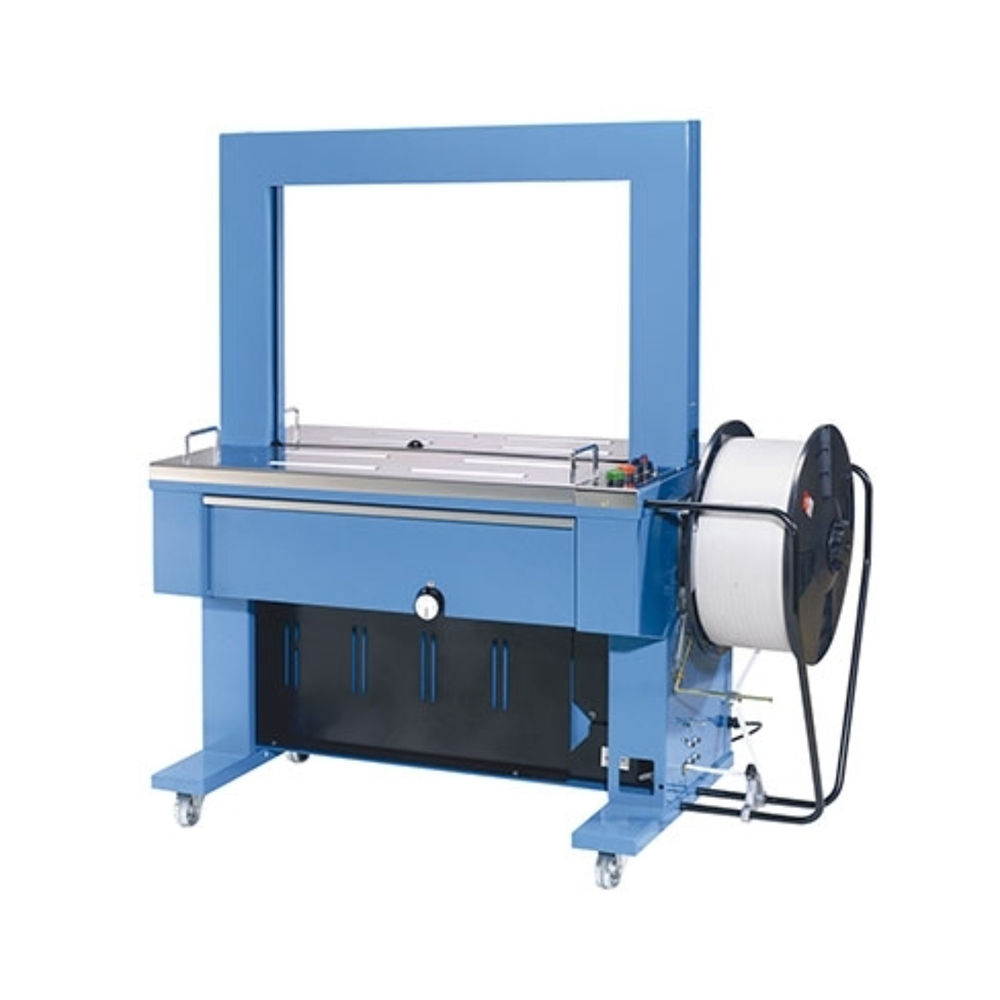

Automatic Strapping Machine GPS - 6000 Economy Model Transpak
Technical Specification:
| Model | GPS - 6000 |
| Capacity | Up to 27 cycles/minute |
| Strap Width | 8 mm, 9 mm, 12 mm, or 15.5 mm |
| Tension Range | 7 - 70 kg (CE version: up to 45 kg) |
| Weight | 220 kg |
| Electrical Requirements | 110V, 220V, 230V, 240V 50/60Hz 1PH 220V, 380V, 400V, 415V 50/60Hz 3PH |

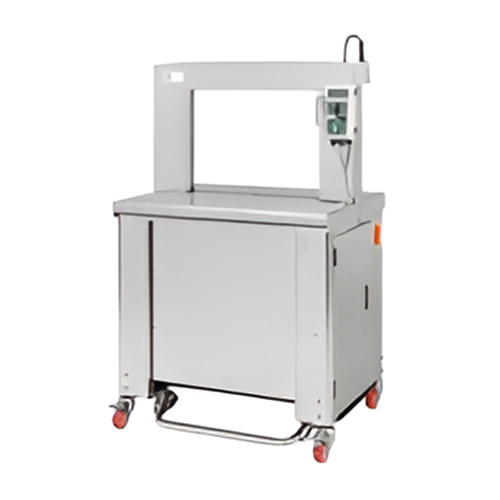

Automatic Strapping Machine GPS - 702S (SS Frame SUS304) Transpak
Technical Specification:
| Model | GPS - 702S |
| Capacity | Up to 65 cycles/minute (TP-702S-59) Up to 60 cycles/minute (TP-702S-12) |
| Strap Width | 5 mm, 6 mm, or 9 mm (TP-702S-59) 12 mm (TP-702S-12) |
| Tension Range | 1 to 32 kg (TP-702S-59) 1 to 45 kg (TP-702S-12) * Higher tension is on request |
| Weight | 158 kg (TP-702S-59) 167 kg (TP-702S-12) |
| Electrical Requirements | 110V, 220V, 230V, 240V 50/60Hz 1PH |

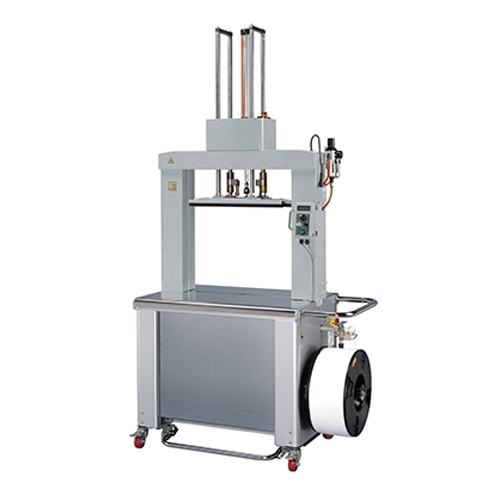

Automatic Strapping Machine Mercury with Dual Pneumatic Press SS Frame (SUS304) Transpak
Technical Specification:
| Model | TPS - 702PS |
| Capacity | Up to 47 cycles/minute (TP-702PS-59) Up to 44 cycles/minute (TP-702PS-12) |
| Strap Width | 5 mm, 6 mm, or 9 mm (TP-702PS-59) 12 mm (TP-702PS-12) |
| Tension Range | 1 to 32 kg (TP-702PS-59) 1 to 45 kg (TP-702PS-12) * Higher tension is on request |
| Weight | 224 kg (TP-702PS-59) 226 kg (TP-702PS-12) |
| Electrical Requirements | 110V, 220V, 230V, 240V 50/60Hz 1PH |
Fully-automatic Strapper with Roller driven Table (Joinpack)
Technical Specification:
| Model | GPS A-93AR |
| Speed (straps / min) | 24 |
| Strap Width (mm) | 9,12,15 specified |
| Tension Range | 15~70kgs |
| Roller Speed (m/min) | 10~40 adjustable |
| Standard Arch (W x H mm) | 850 x 600 |
| Motor | AC |
| Sealing Method | Heating element |
| Table Height (mm) | 805 |
| Power Supply | 110/220/230/240V, 50/60Hz,1PH 220/230/380/415/400V, 50/60Hz, 3PH |
| Power Consumption (kw) | 1 |
| Layout Dimension(L x W x Hmm) | 1440 x 600 x 1530 (50%,100%,150%,200%) |

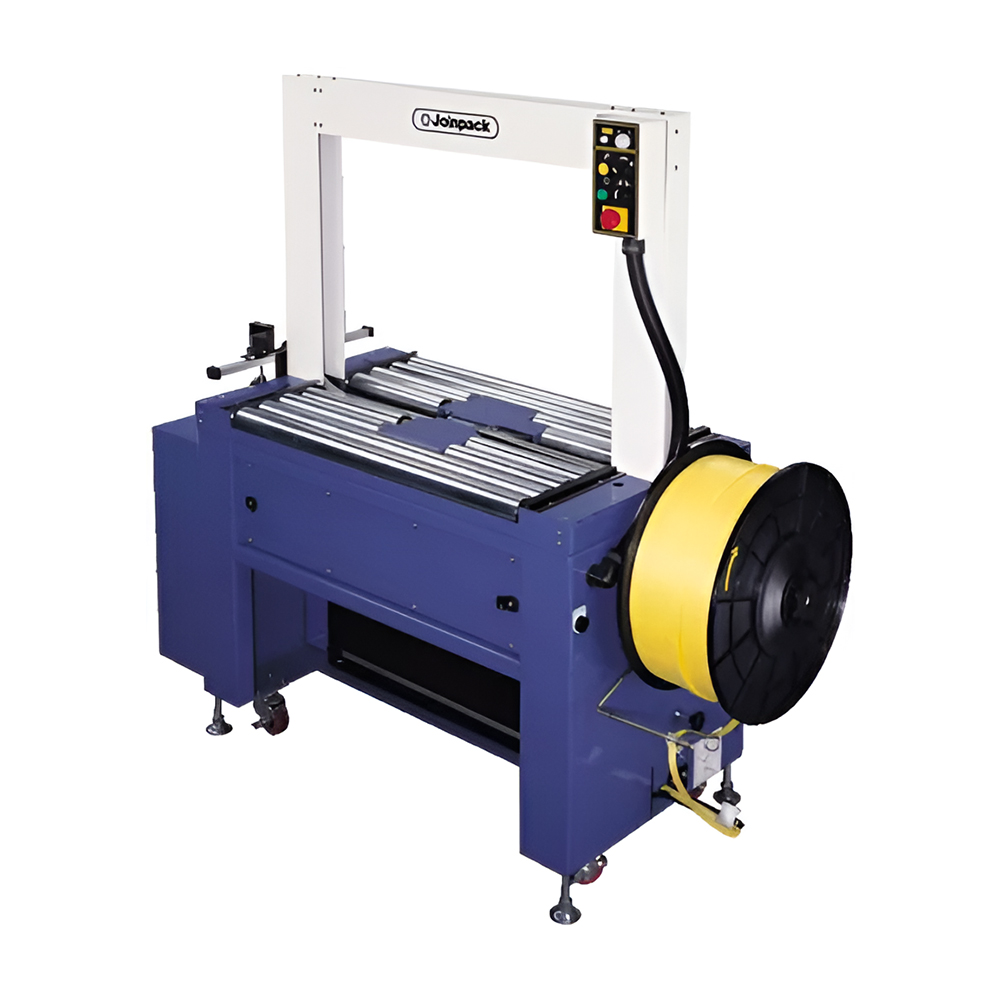

IN-LINE Fully automatic Belt Driven Joinpack
Technical Specification:
| Model | GPS - A-A93AB |
| Speed (straps / min) | 24 |
| Strap Width (mm) | 9,12,15 specified |
| Tension Range | 15~70kgs |
| Belt Speed (m/min) | 10~40 adjustable |
| Standard Arch (W x H mm) | 850 x 600 |
| Motor | AC |
| Sealing Method | Heating element |
| Table Height (mm) | 805 |
| Power Supply | 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH |
| Power Consumption (kw) | 1 |
| Layout Dimension(L x W x H mm) | 1440 x 600 x 1530 (50%,100%,150%,200%) |

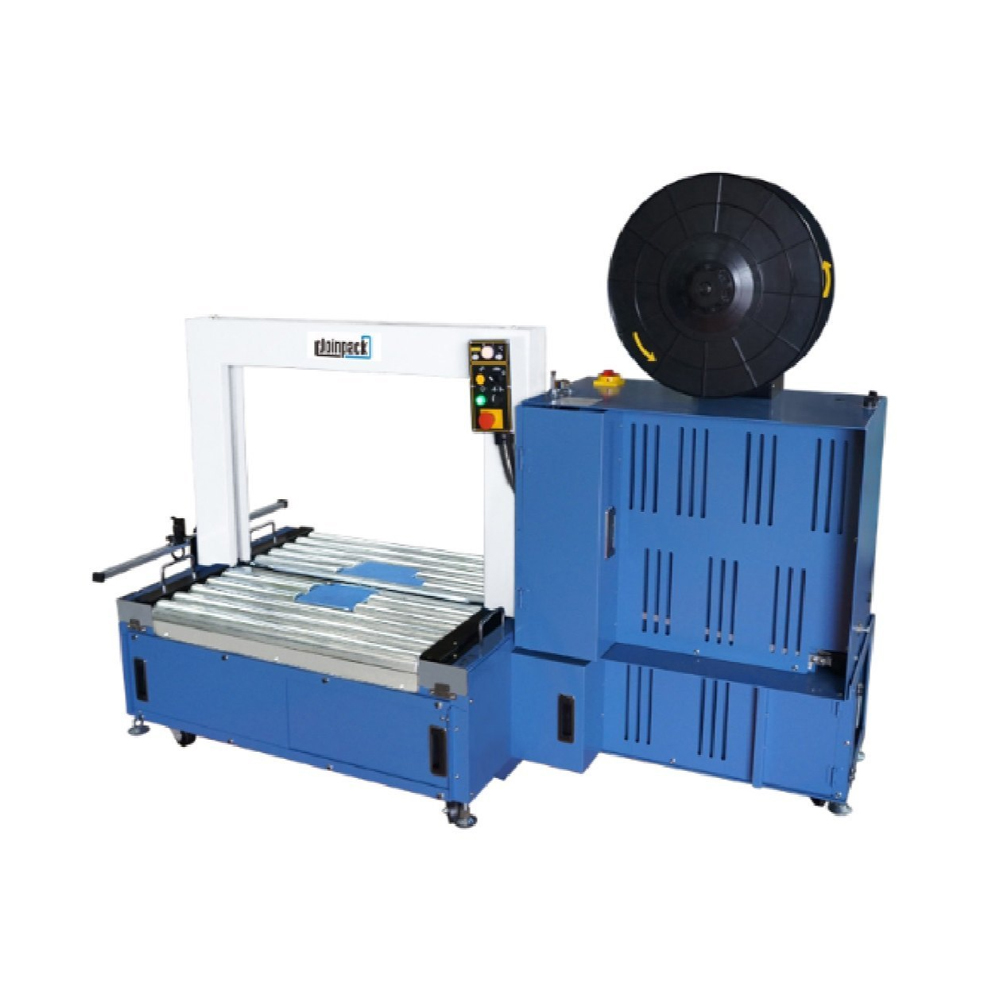

Fully Automatic Roller Driven with Low Table Joinpack
Technical Specification:
| Model | GPS - 93LAR |
| Speed (straps / min) | 24 |
| Strap Width (mm) | 9,12,15 specified |
| Tension Range | 15~70kgs |
| Roller Speed | 10~40 adjustable |
| Standard Arch (W x H mm) | 850 x 600 |
| Motor | AC |
| Sealing Method | Heating element |
| Table Height (mm) | 440 |
| Power Supply | 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH |
| Power Consumption (kw) | 1 |
| Layout Dimension (L x W x Hmm) | 1925 x 705 x 1480 (50%,100%,150%,200%) |

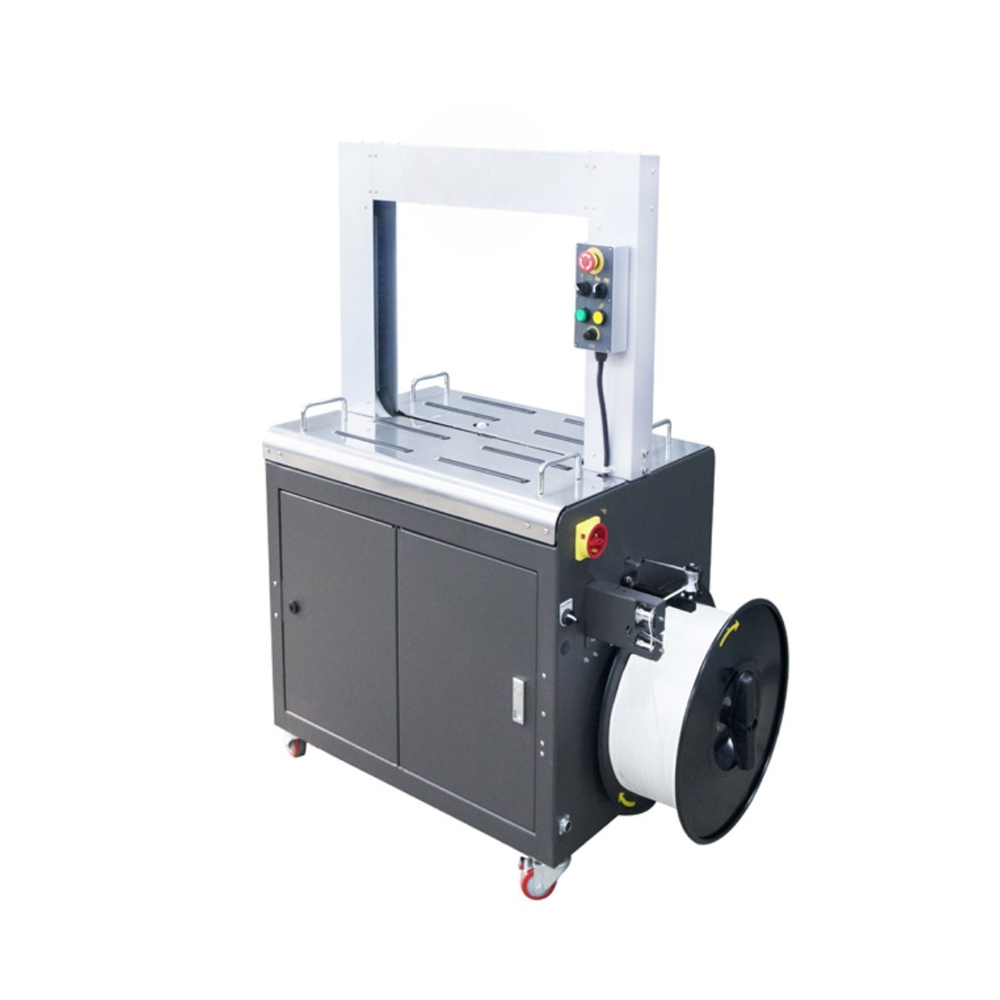

AC Motor Driven Advance Automatic Strapping Machine - GPS 85 Joinpack
Technical Specification:
| Model | GPS - 85 |
| Speed (straps / min) | 40 |
| Strap Width (mm) | 5,6,9,12,15 specified |
| Tension Range for 5,6mm | 3~30kgs |
| Tension Range for 9,12,15mm | 5~70kgs |
| Standard Arch (W x H mm) | 650 x 500 |
| Motor | AC |
| Sealing Method | Heating element |
| Table Height (mm) | 805 |
| Power Supply | 110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH |
| Power Consumption (kw) | 1.2 |
| Layout Dimension (L x W x Hmm) | 1230 x 580 x 1430 (50%,100%,150%,200%) |

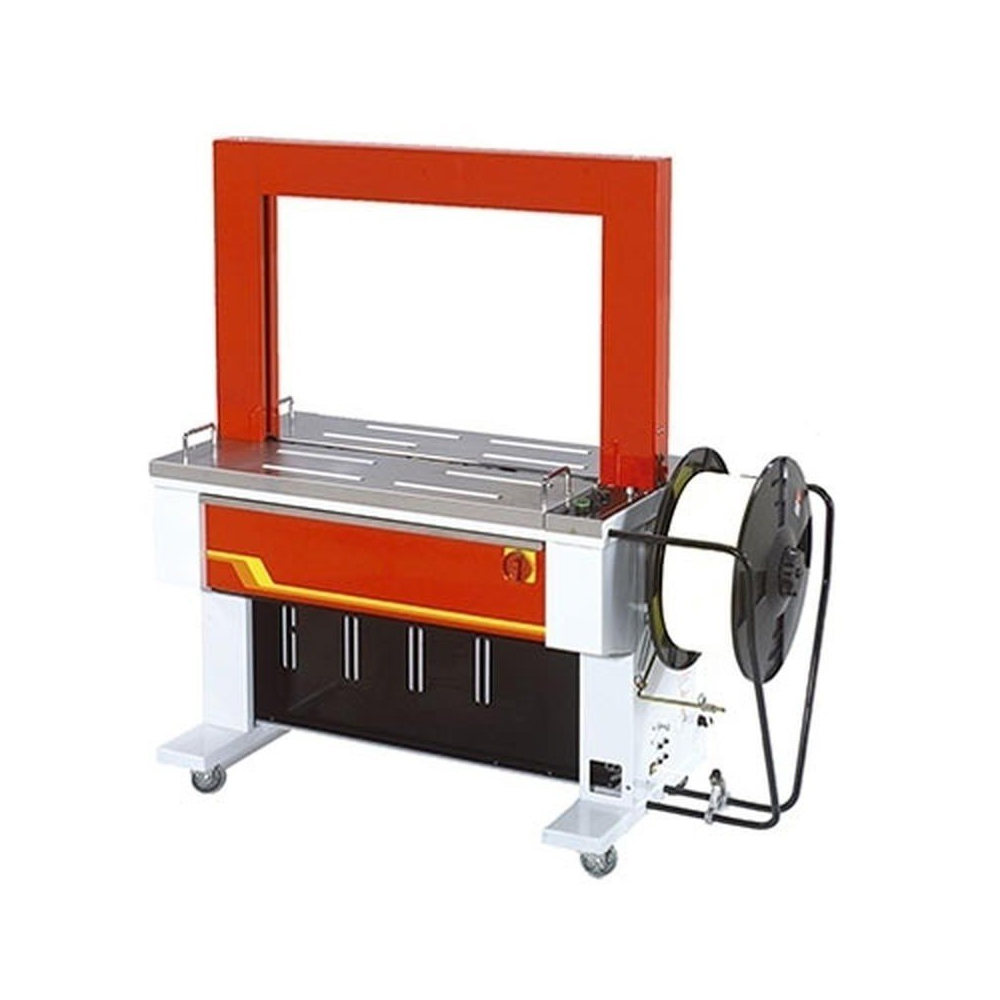

Automatic Strapping Machine GPS - 601D Taurus
Technical Specification:
| Model | GPS - 601D |
| Capacity | Up to 29 cycles/minute |
| Strap Width | 8 mm, 9 mm, or 12 mm |
| Tension Range | 7 - 45 kg *up to 70 kg on request |
| Maximum Package Weight | 100 kg |
| Table Height | 810 mm |
| Weight | 220 kg |
| Electrical Requirements | 110V, 220V, 230V, 240V 50/60Hz 1PH 220V, 380V, 400V, 415V 50/60Hz 3PH |

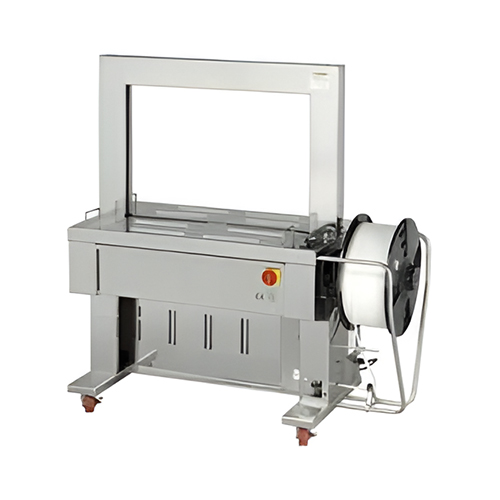

Automatic Strapping Machine GPS - 6000S Economy Model
Technical Specification:
| Model | GPS - 6000S |
| Capacity | Up to 27 cycles/minute (60Hz, 1PH) |
| Strap Width | 8 mm, 9 mm, 12 mm, or 15.5 mm |
| Tension Range | 7 - 70 kg (CE version: up to 45 kg) |
| Weight | 220 kg |
| Electrical Requirements | 110V, 220V, 230V, 240V 50/60Hz 1PH 220V, 380V, 400V, 415V 50/60Hz 3PH |
Automatic Strapping Machine Regular Offline
Technical Specification:
| Model | GPS 101 F R |
| Min. Strap Size (mm) | 80x50 |
| Strapping Speed (seconds) | 2 |
| Strap Width (mm) | 09-Dec |
| Strap Force (Newton) | 25 - 700 |
| Working Table Height (mm) | 830 |
| Power Source (V/Hz) Three Phase | 440 / 50, 0.1.2HP |
| External Dimension (mm) | 1370x600x1515 |
| Weight (kg) | 235 |

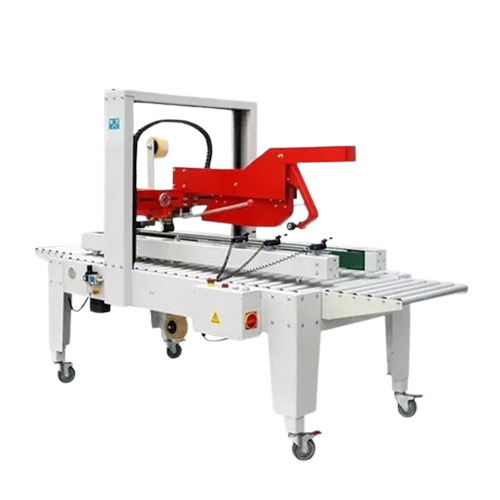

Auto Flap closure with Strapping Combo Machine
Technical Specification:
| Model | GPS 102 FSC |
| Flap Folder | |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Maximum Carton Size (LxWxH)(mm) | 550x500x500 |
| Minimum Carton Size (LxWxH)(mm) | 200x150x110 |
| Speed (m/min) | 22-25 cartons |
| Available Adhesive Tape | BOPP, PVC Adhesive Tape |
| Height of Table (mm) | 600-700 |
| Width of Adhesive Tape (mm) | 3 inch |
| Air Compressor | 04-Jun |
| Power(W) | 260 |
| Strapping + Taping Combo | |
| Power Supply | 1 Phase 110V/220V/240V |
| Packing Size | Max.: L∞ x W500 x H500 mm Min.: L150 x W135 x H130 mm |
| Tape Width | 50 mm (2") or 76 mm (3") |
| Working Table Height | 570~770 mm (Adjustable) |
| Sealing Capacity | 20 Cartons per minute (Carton: L500 mm, Power: 60 HZ) |
| Dimensions | L1373 x W900 x H1375 mm |

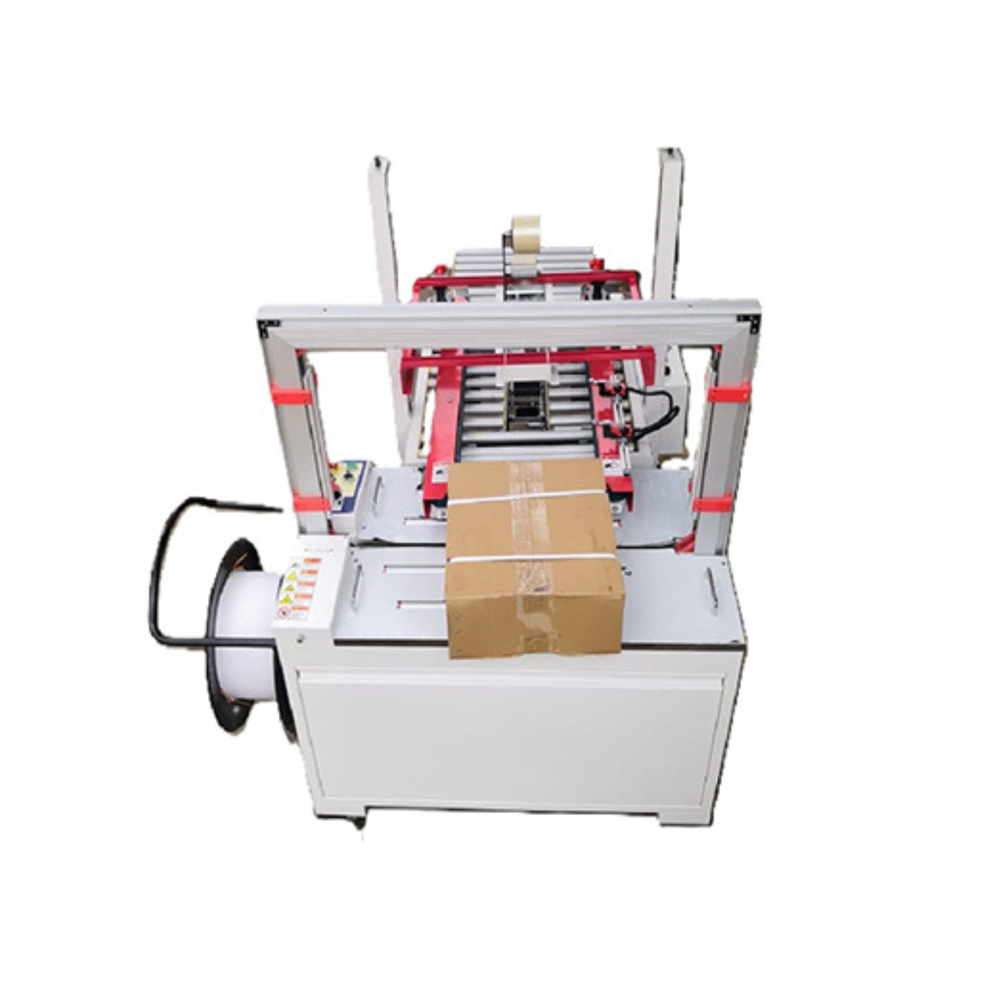

Automatic Strapping and Taping Machine Combo (Regular)
Technical Specification:
| Model | GPS 102 FTC R |
| Voltage (V/Hz) | AC 380/50 220/60 110/60 |
| Power (W) | 1050 |
| Max. Carton Size (L× W×H) (mm) | 500×500×500 |
| Min. Carton Size (L× W×H) (mm) | 300×130×180 |
| Speed (m/min) | 16 |
| Productive Capacity (pcs/h) | 600 |
| Height of Table (mm) | 750 or 830 |
| Adhesive Tape (mm) | BOPP, PVCadhesive tape, water-free adhesive tape，width 48, 60, 76mm（Optional） |
| Available Strapping Belt (mm) | plastic strapping belt，width9~15 thickness0.5~1.1 |
| External Dimensions (L×W×H) (mm) | 2650×1420×1565 |
| Net Weight (kg) | 385 |
