L Sealer
Pneumatic L sealer machine model GPS- BSL-5045LA
Technical Specification:
| MODEL | BSL-5045LA |
| Voltage (V/Hz) | 220/50 |
| Air Pressure Required (kg/cm³) | 6-8 |
| Power (kw) | 1.2 |
| Capacity (PCS/h) | 800-1200 |
| Max. Packing Size (mm) | W+H < 450，W < 400 |
| Max. Sealing & Cutting Size (L×W) (mm) | 500×450 |
| External Dimension (L×W×H) (mm) | 1560×757×1040 |
| Net Weight (kg) | 135 |
L Seal Semi-automatic Box Cutting Machine GPS - BSL 5045L (Hualian)
Technical Specification:
| Model | GPS - BSL 5045L |
| Voltage (V/Hz) | 220/50 |
| Air Pressure Required (kg/cm³) | - |
| Power (kw) | 1.2 |
| Capacity (PCS/h) | 800-1200 |
| Max. Packing Size (mm) | W+H < 450, W < 400 |
| Max. Sealing & Cutting Size (LxW) (mm) | 500x450 |
| External Dimension (LxWxH) (mm) | 1560x757x1040 |
| Net Weight (kg) | 125 |

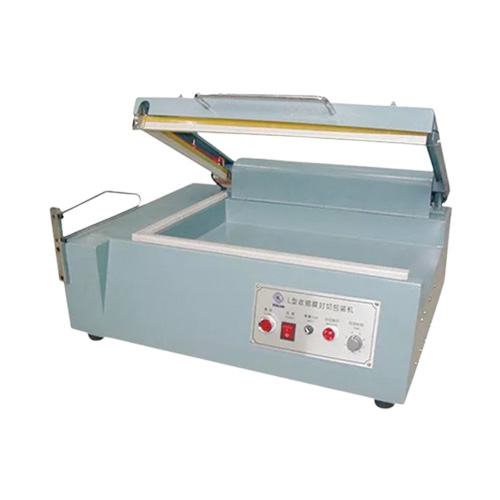

L-Bar Manual Sealing Cutter GPS - BSF 501/601 (Hualian)
Technical Specification:
| Model | GPS - BSF 501 | GPS - BSF 601 |
| Voltage (V/Hz) | AC 220/50 110/60 | |
| Instantaneous Power (kw) | 1 | 2.4 |
| Max. Sealing Area (LxW) (mm) | 500x350 | 600x500 |
| Adjustable Heating Time (sec.) | 0-2 | |
| External Dimension (LxWxH) (mm) | 950x550x370 | 1100x820x420 |
| Net Weight (kg) | 23 | 35 |

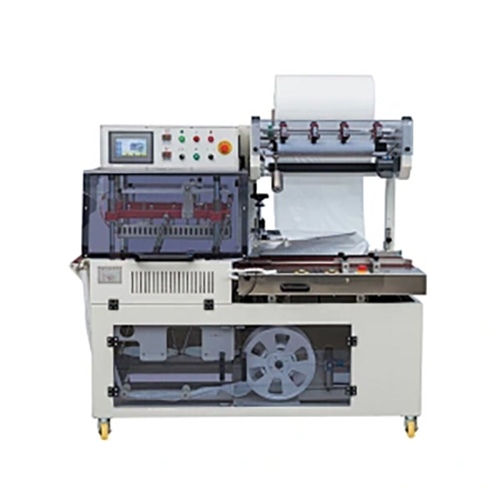

High Speed L SEALER GPS - DQL5545PEG
Technical Specification:
| Model | GPS - DQL5545PEG |
| Voltage | 220V 50HZ |
| Air source | 5-6kg/m2 |
| Capacity | 0-30pcs |
| Packing Material | PE |
| Max Sealing size | L550*W450 |
| Max packing size | H≤140 L+2H≤550 W+2H≤450 |
| Machine size | L1760*W940*H1580 |

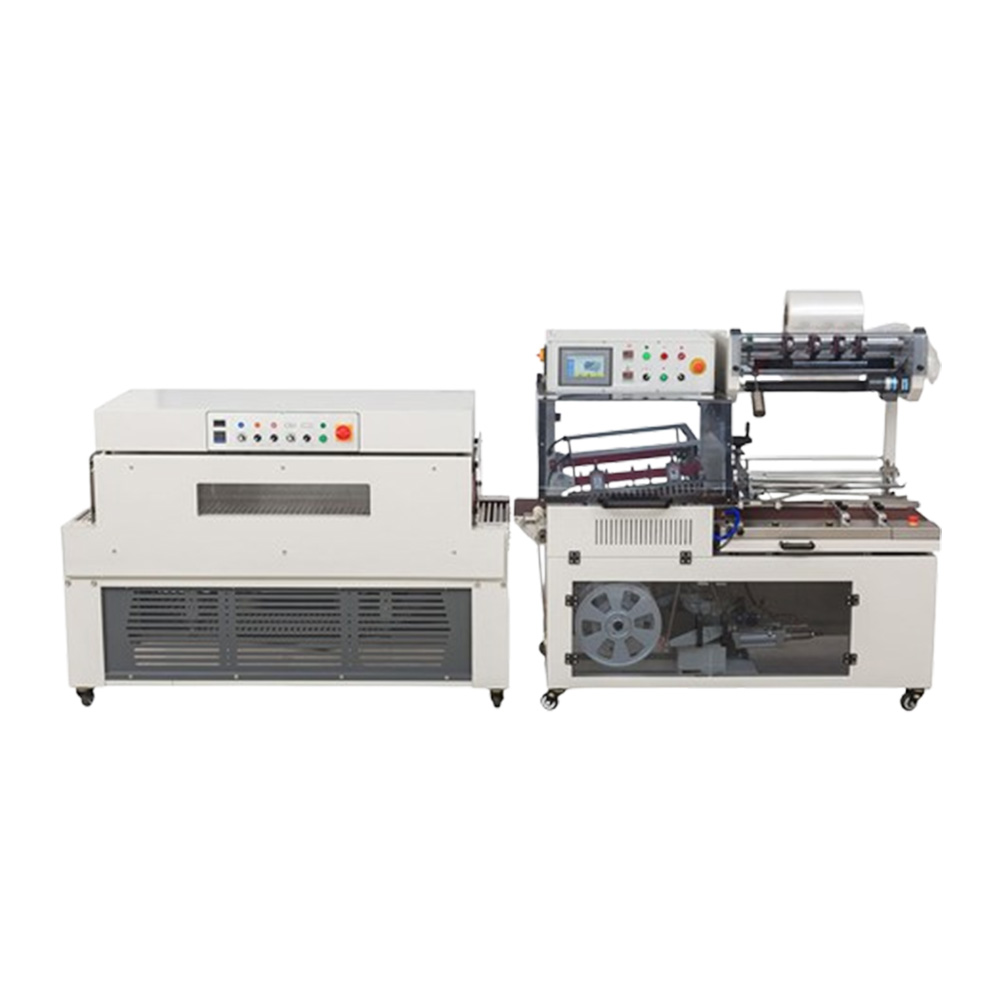

High Speed Automatic L - Sealer GPS - DQL4545SG With DSC4525L Shrink Tunnel
Technical Specification:
| Model | GPS - DQL5545SG |
| Max packing size(mm) | L+2H≤550,W+2H≤450,H≤140 |
| Max sealing size(mm) | L550xW450 |
| Power(KW) | 2.2 |
| Capacity | 0-40 pcs/min |
| Voltage | 220V 50/60HZ |
| Sealing temperature | 180°C-250°C depends on the thickness of the film and environment temperature |
| The thickness of film(mm) | 0.015-0.05 |
| Packing material | POF PVC |
| Machine weight(kg) | 320 |
| Machine size(mm) | L1760xW940xH1580 |
| Model | DSC-4520 | DSC-4525L |
| Power source | 380V 50-60Hz | 380V 50-60Hz |
| Power | 12.8KW | 13.2KW |
| Conveyor speed | 0-16m/min | 0-16m/min |
| Tunnel size(L*W*H) | 1200*450*200mm | 1500*450*250mm |
| Conveyor loading | 10kg | 10kg |
| Machine size (L*W*H) | 1500*700*1260mm | 1800*700*1300mm |

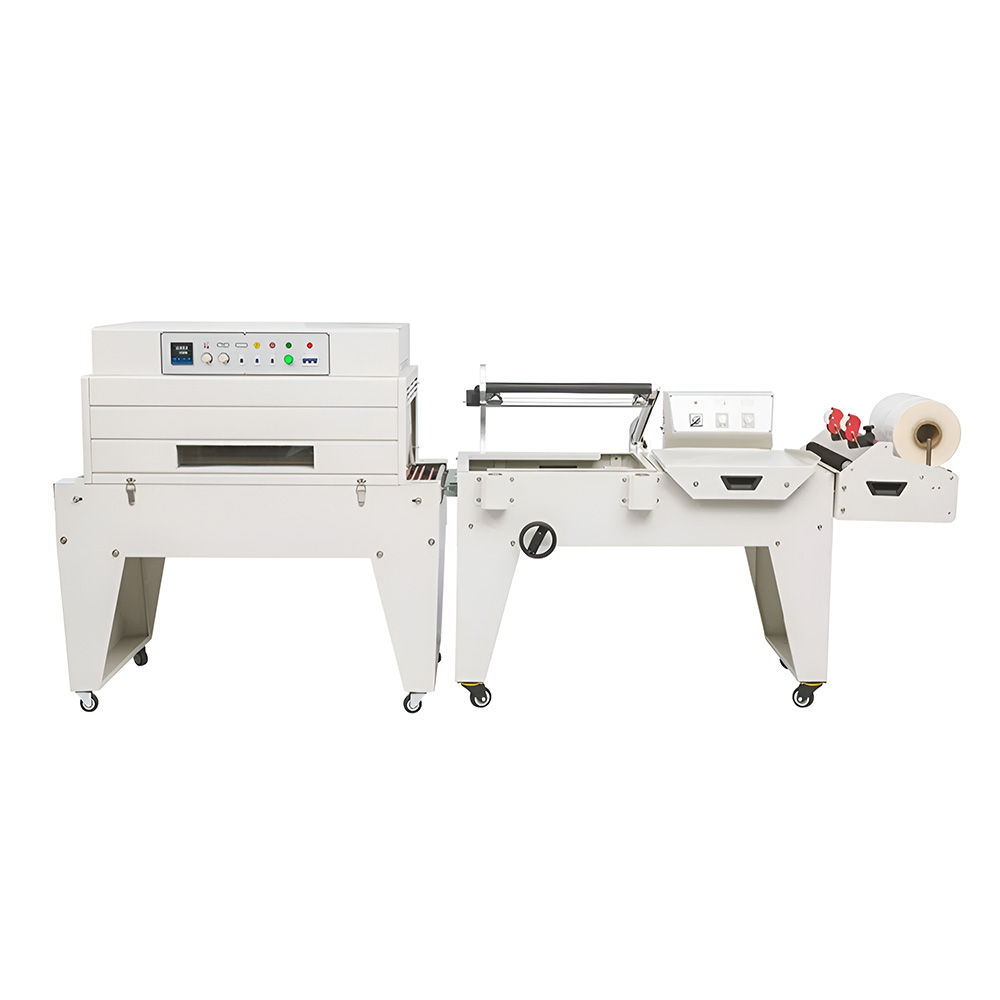

Semi-automatic L Type Sealer and Shrink Tunnel (Dingye)
Technical Specification:
| Model | GPS - DFQA450 | GPS - DSA4525 |
| Commodity | L-type sealer | thermal shrink tunnel |
| Power source | 220V 50-60HZ | 220V/50-60HZ |
| Heater power | 2KW | 9kW |
| Conveyor speed | 0 -15m /min | 0 -12m /min |
| Max sealing size(LxW) | 550x450mm | 1000*450*250mm |
| Max conveyor loading | 25kg | 5kg |
| Machine size(LxWxH) | 1470x820x970mm | 1260*670*1290mm |
| Machine weight | 100kg | 98kg |
| Cutting film | POF,PVC,PP | POF,PVC,PP |
Automatic L Sealer (Economy Model)
Technical Specification:
| Model | GPS - DQL4515D |
| Voltage | AC220V 50Hz/60Hz |
| Horizontal heating power (W) | 800 |
| Side heating power (W) | 400 |
| Sealing temperature | It is related to the film thickness and ambient temperature, generally 180℃—250℃ |
| Sealing time (sec) | 0.2-1.0 |
| Film thickness (mm) | 0.015-0.05 |
| Working efficiency (pcs/min) | 0-25 |
| Packaging Materials | POF film |
| Maximum package size (mm) | H≤140 W+H≤330, length is not limited |
| Dimensions (mm) | L1633xW870xH1466 |
| Machine weight (Kg) | 300 |

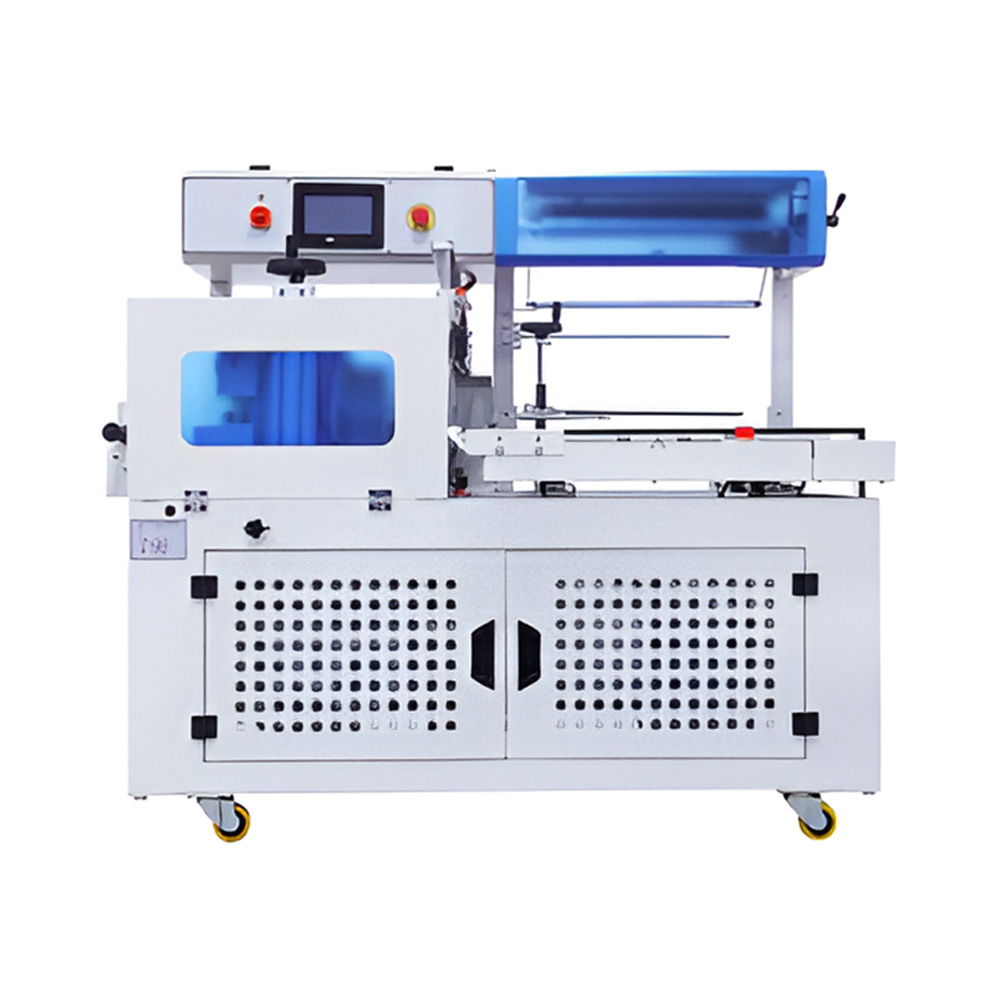

Automatic L - Sealer GPS - DQL5545D (Economy Model)
Technical Specification:
| Model | GPS - DQL5545D |
| Voltage | AC220V 50Hz/60Hz |
| Horizontal heating power (W) | 800 |
| Vertical heating power (W) | 1000 |
| Sealing temperature | It is related to the film thickness and ambient temperature, generally 180℃—250℃ |
| Sealing time (sec) | 0.2-1.0 |
| Film thickness (mm) | 0.015-0.05 |
| Working efficiency (pcs/min) | 0-25 |
| Packaging Materials | POF film |
| Maximum sealing size (mm) | L550xW450 |
| Maximum package size (mm) | H≤140 L+2H≤550 W+H≤330 |
| Dimensions (mm) | L1680xW840xH1475 |
| Machine weight (Kg) | 280 |
