Pallet Stretch Wrapping Machine

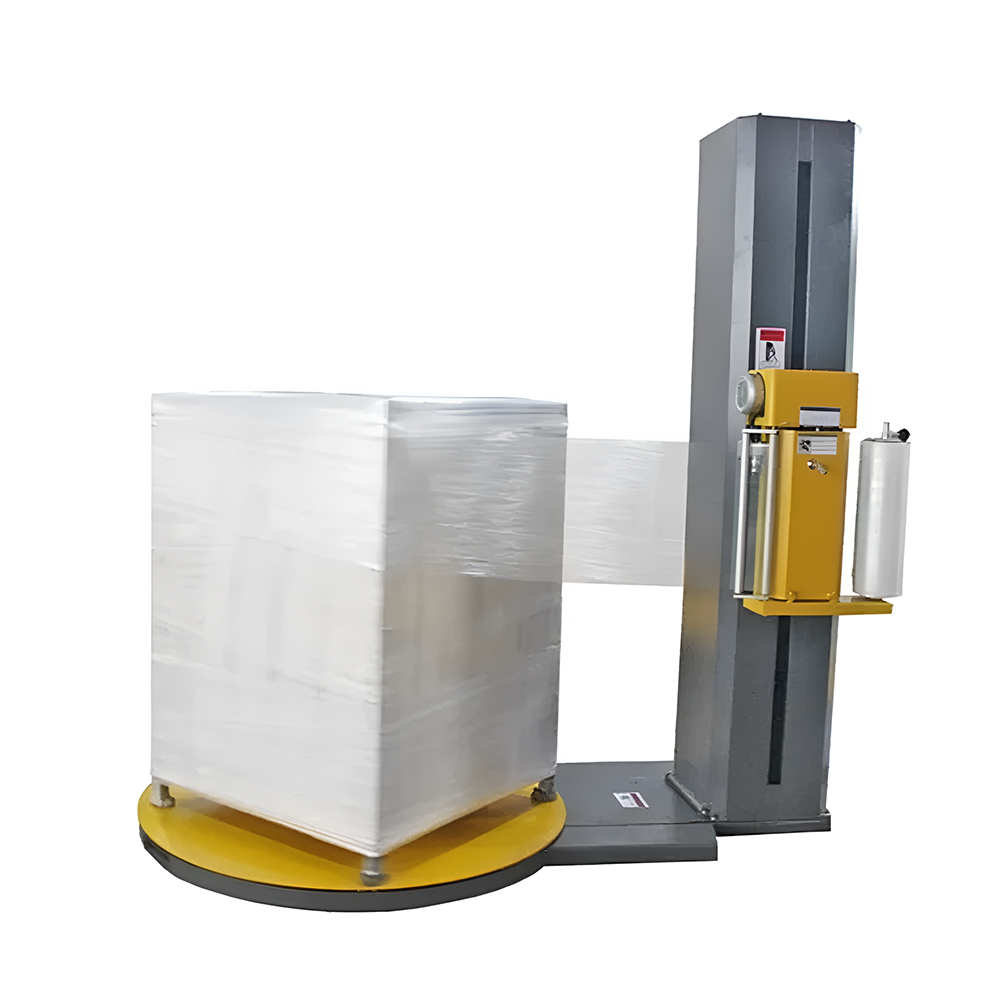

Pallet Stretch Wrapping Machine GPS - 2100
| Model | GPS - 2100 |
| Max Wrapping Size(LXWXH) (Max)(mm) | 1250 x 1250 x 2400 |
| Wrapping Efficiency(loads/hour) | 20 - 40 |
| Turntable Speed(rpm/min) | 03-Dec |
| Turntable Diameter(mm) | Ø : 1650 / H : 85 |
| Turntable Loading (max)(kg) | 1500 |
| Electrical requirement ( V/Hz) | 220 / 50 |
| Power (kw) | Turntable:0.75 Film, Carriage:0.4; Steel Tower:0.37 |
| Film Carriage | Pre-Stretch Type |
| Top Plate Device | Pneumatic Direct Transmit, Orbit Top Plate |
| Weight (kg) | 700 kg |
| Machine Dimension (Lx WxH) (mm) | 2745 x 1650 x 2800 |
Pallet Wrapping Machine Model GPS MH FG-2000A
| Machine technical data | GPS MHFG-2000A |
| Power supply | 1P AC220V 50Hz 1KW (anti-stretch) |
| Rotation speed | 0-10r/min (option) |
| Lifting unit | Photoelectric switch controls the height  Sensors can sense upto 2100 mm of any pallet |
| A Film-stretching unit | Film tension can be manually modified by hand
grip (mechanical anti-stretch) Film tension can be modified by magnetic brake (magnetic anti-stretch) |
| A Capacity | Turntable: I¦ 1500 mm 1500 kg; Turntable: I¦ 1650 mm 2000 kg Max package weight: 2000Kg. >2000kg (custom-made is available) |
| Column Height | Total height of column - 2400mm |
| Weight of the machine | 650Kg |
| Attachment | Ramp (option)A |

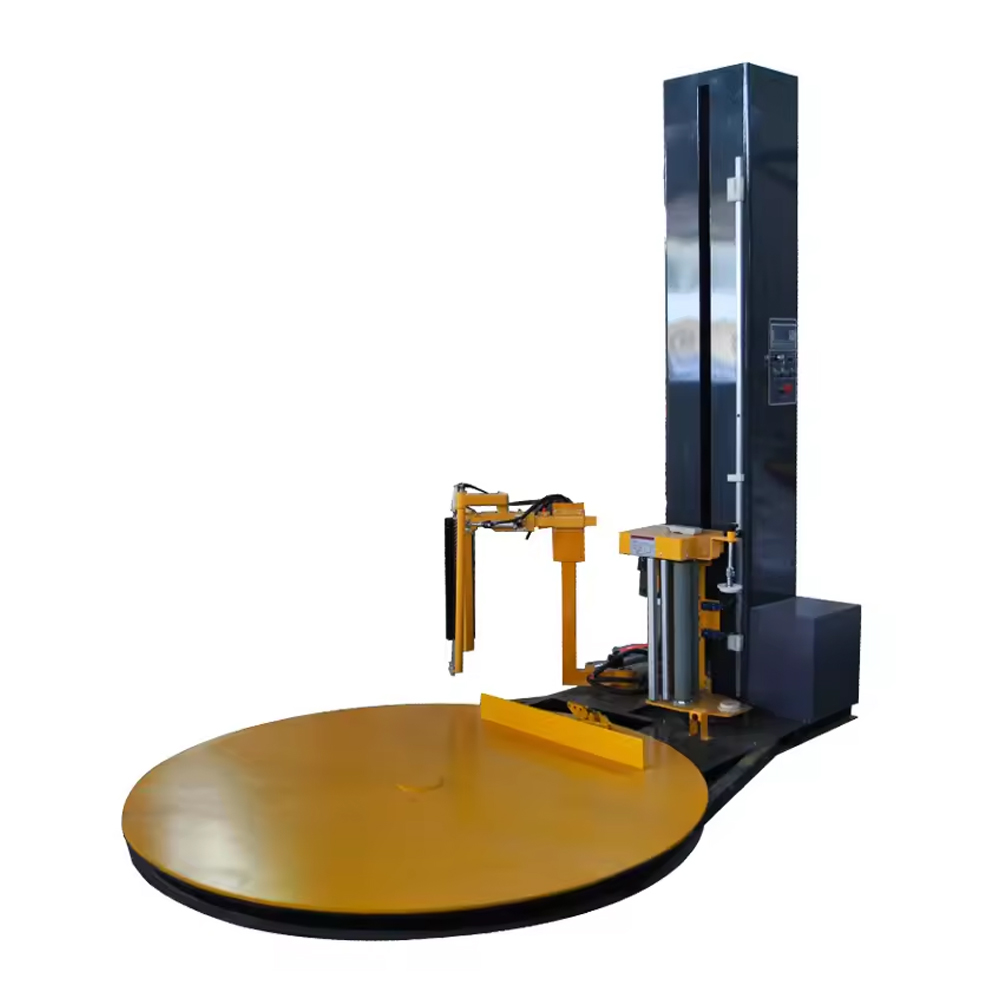

Pallet Wrapping Machine Model GPS MH FG-2000B
| Machine technical data | GPS MHFG-2000 B |
| Power supply | 1P AC220V 50Hz 1.25KW (anti-stretch) |
| Rotation speed | 0-10r/min (option) |
| Lifting unit | Photoelectric switch controls the height A Sensors can sense upto 2100 mm of any pallet |
| A Film-stretching unit | Film Tension can be automatically modified by frequency regulation (Pre Stretch) |
| A Capacity | Turntable: I¦ 1500 mm 1500 kg; Turntable: I¦ 1650 mm 2000 kg Max package weight: 2000Kg. >2000kg (custom-made is available) |
| Column Height | Total height of column - 2400mm |
| Weight of the machine | 750Kg |
| Attachment | Ramp (option)A |
- 250 - 300% stretch-ability
- Higher yield of stretch film
- Quality, clean and uniform Finishing on each and every pallet.
- Time and labour cost saved
- Easy Operation
- Maintenance Free machine ( mechanical side ) i.e Minimum maintenance

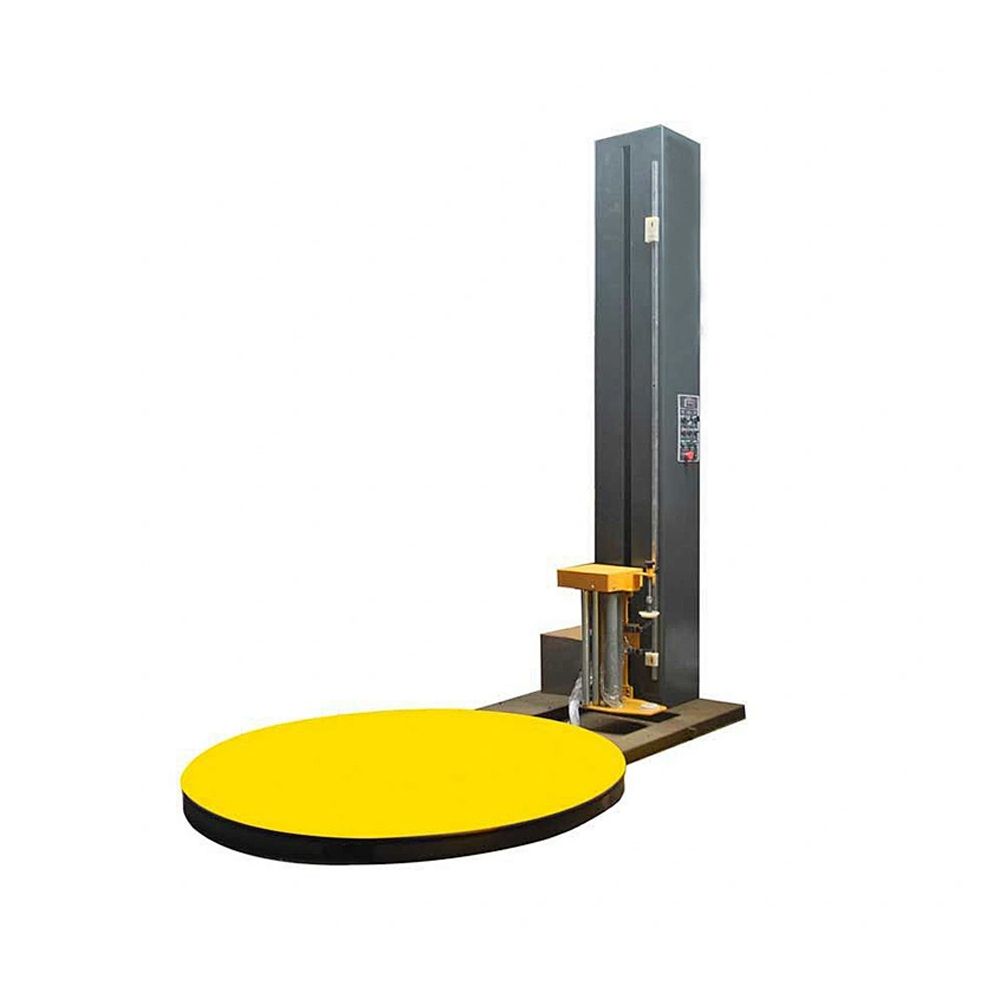

Pallet Wrapping Machine Dingye Make Model TP1650F-L
The stretch wrapping machine is used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported and stored to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified. The stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc.
Technical Specification:| Model | TP1650F-L |
| Voltage | 220V50HZ |
| Wrapping size(L*W) | (500-1200)mm*(500-1200)mm |
| Packing height | L type:(500-2000)mm H type: (500-2400)mm Y type: (500-higher than 2400)mm |
| Packing efficiency | 20-40 loads/hour |
| Turntable speed | 0-12rpm |
| Turntable diameter | Diameter:1650mm height:85mm |
| Turntable loading(max) | 2000kg |
| Up-down frame | Double-chain,Up-down speed variable |
| Film carriage | Pre-stretch |
| Control system | PLC |
| Machine weight(max) | 700kg |
| Machine size | 2650mm*1650mm*2400mm |
| Packing size | 2650mm*1650mm*2000mm |
| Electrics | Single-phase 220V/50Hz |
| Power | Turntable:0.75kw, |
| film carriage | 0.3kw,up-down:0.4kw |

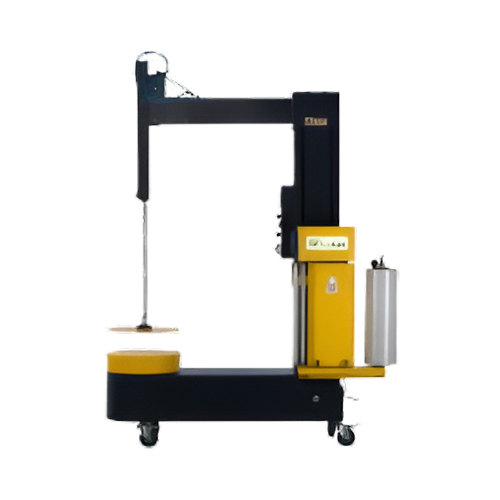

Box Wrapping Machine with Top Press Model GPS-MH FG-800B
| Power | 1P AC220V /110V ,50/60HZ |
| Air press | 0.4 — 0.6 MPa |
| Speed of turntable | 0-20rpm |
| Table-board height | 650mm |
| Dia. of turntable | 𝛟400 mm |
| Wrapping height | 400-500 mm; 500 — 650 mm; |
| Capacity | 80kg |
| Packing material | LLDPE film, width <=500 mm, out diameter <=𝛟>280 mm |
| Machine weight | 110kg |
| Noise | <=75DB |
| Surroundings Humidity | <=98%, temperature -10°C-40°C |
| Lubricant-material | Common lubricating grease |
Box Wrapping Machine with Out Top Press Dingye Make GPS-DBC800
| Model | DBC800 |
| Voltage | 220V, 50-60HZ |
| Power | 0.12KW |
| Max packing size(mm) | 900x900x900 |
| Speed | 30r/min |
| Max.loading | <=30Kg |
| Machine size(mm) | L1150xW600xH1S61 |

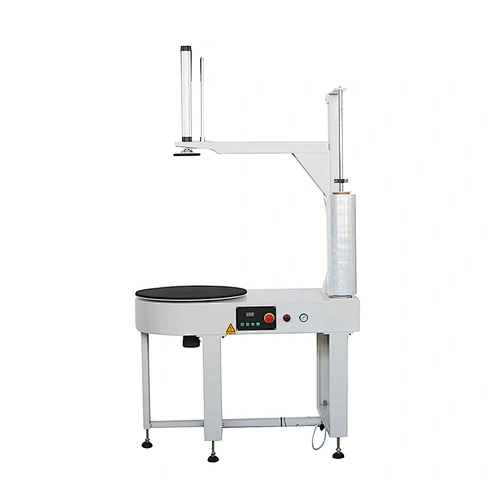

Box Wrapping Machine with Top Press Dingye Make GPS-DBF800S
This semi-automatic stretch film wrapper is specially designed for packing small and medium sized objects packed in carton box or directly palletized onto the rotating platform without pallet. And the top plate is one option for the unstable goods and ensure it safety packing. The machine is widely suitable for goods with light weight that can be manually loaded & unloaded from the machine.
Technical Specification:| Model | GPS- DBC800S |
| Voltage | 220V, 50～60HZ |
| Power | 0.12KW |
| Max packing size(mm) | 900×900×900 |
| Speed | 30r/min |
| Max.loading | ≤80Kg |
| Machine size(mm) | L1150×W600×H2347 |
