Shrink Tunnel Machine

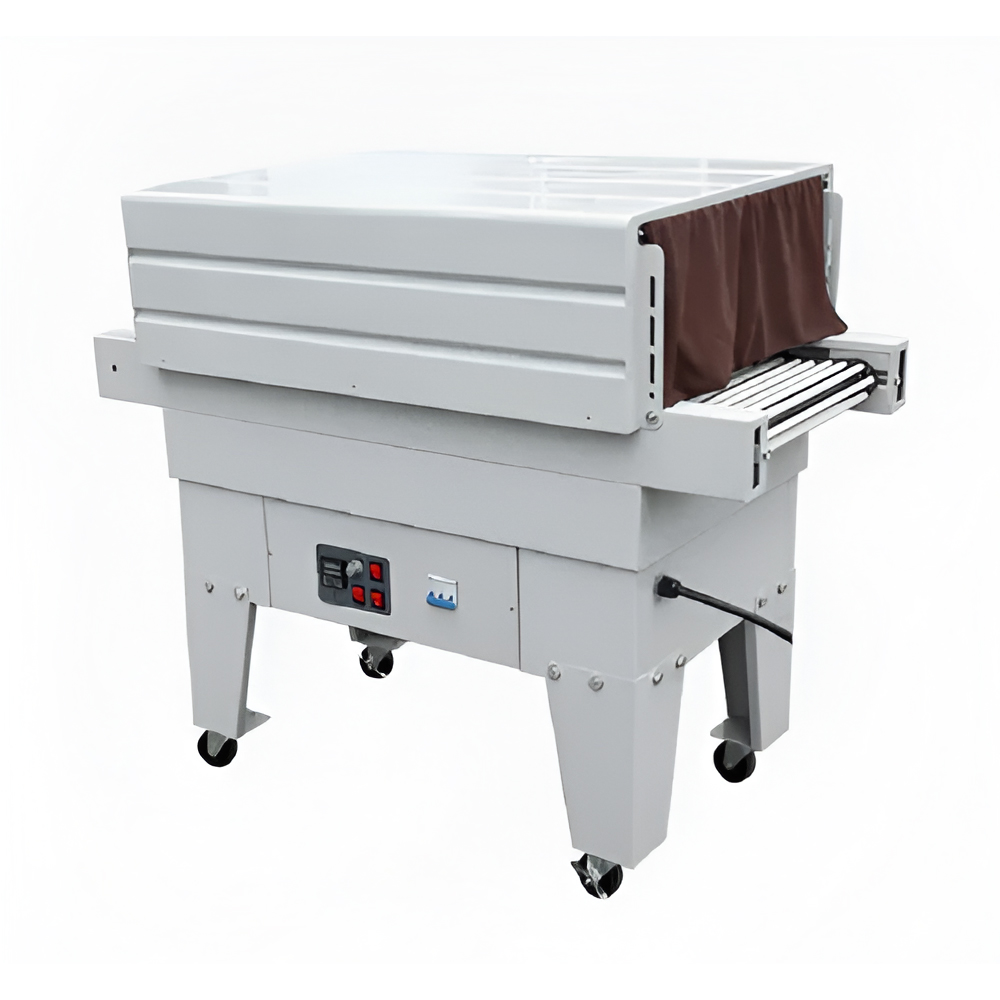

Mini Shrink Tunnel GPS-BS-3020A
Technical Specification:
| MODEL | GPS-BS-3020A |
| Voltage(V/Hz) | 220/50 380/50(3PH) 220/60(3PH) |
| Power(kw) | 5.1 |
| Loading(kg) | 10 |
| Speed(m/min) | 0~10 |
| Tunnel Size (LXWXH)(mm) | 900X300X(50-200) |
| External Dimensions(LXWXH)(mm) | 1200X500X1050 |
| Net Weight(kg) | 60 |

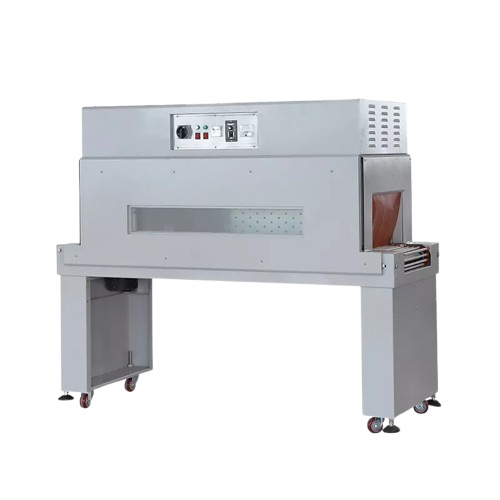

Mini Heat Shrink Tunnel for Water Bottle GPS - BS 4525L
Technical Specification:
| Model | GPS -BS 4525L |
| Voltage(V/Hz) | 380/50(3PH) or 220/60(3PH) |
| Power(kw) | 25 |
| Loading(kg) | 10 |
| Max. Packing Size(WxH)(mm) | 400x200 |
| Speed (m/min) | 0-10 |
| Tunnel Size (LxWxH)(mm) | 1227x450x250 |
| External Dimension (LxWxH)(mm) | 1780x750x1380 |
| Net Weight (kg) | 240 |
Automatic Heat Shrink Tunnel for Labels Model GPS-BS-1540
Technical Specification:
| Model | BS-1540 |
| Voltage (V/Hz) | 380/50 (3P) or 220/60 (3P) |
| Height of conveyor | 850土50mm |
| Max. Packing Size(L×W×H)(mm) | unlimitedx150x400 |
| Packing Speed (pcs/hour) | 8000- 12000/h |
| Power | 1600×150×400 |
| External Dimensions (L×W×H)(mm) | 1900×600×1665 |

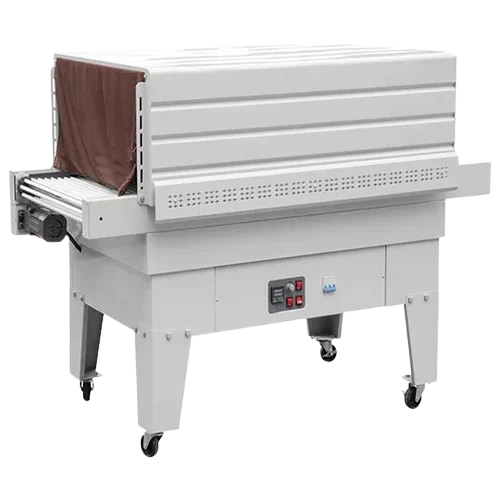

Shrink Tunnel Model GPS-BS 6535LA
Technical Specification:
| MODEL | BS-6535LA |
| Voltage(V/Hz) | 380/50(3PH) 220/60(3PH) |
| Power(kw) | 9.6 |
| Loading(kg) | 30 |
| Speed(m/min) | 0~10 |
| Tunnel Size (L×W×H)(mm) | 1200×650×(50-350) |
| External Dimensions(L×W×H)(mm) | 1600×850×1200 |
| Net Weight(kg) | 150 |

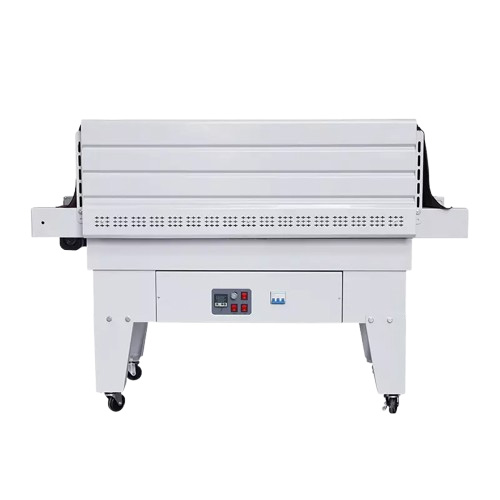

Automatic Heat Shrink Tunnel for Round Bottles GPS - BS 4535LAG (Hualian)
Technical Specification:
| Model | GPS - BS 4535LAG |
| Voltage(V/Hz) | 380/50(3PH) 220/60(3PH) |
| Power(kw) | 9.6 |
| Loading(kg) | 30 |
| Speed(m/min) | 0~10 |
| Tunnel Size (LxWxH)(mm) | 1200x450x(50-350) |
| External Dimensions(LxWxH)(mm) | 1600x650x1200 |
| Net Weight(kg) | 120 |

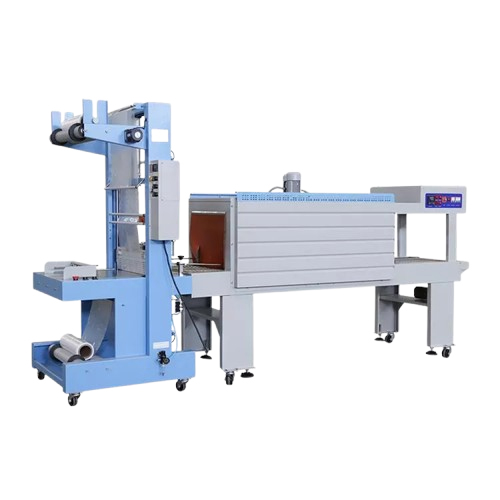

Web Sealer Tunnel Model GPS-TF6540SA + BS5540M
Technical Specification:
| MODEL | TF-6540SA |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Air Pressure Required (kg/cm³) | 5-7 |
| Power (kw) | 1.5 |
| Max. Packing Size (L×W×H) (mm) | 550×400×380 |
| Max. Sealing Length (mm) | 650 |
| External Dimension (L×W×H) (mm) | 925×1040×1920 |
| Net Weight (kg) | 300 |
| MODEL | BS-5540M |
| Voltage (V/Hz) | 380/50(3P) 220/60(3P) |
| Power (kw) | 23 |
| Loading (kg) | 40 |
| Conveying Speed (m/min) | 0~8 |
| Tunnel Size (L×W×H) (mm) | 1450×550×400 |
| External Dimensions (L×W×H) (mm) | 2550×850×1600 |
| Net Weight (kg) | 300 |

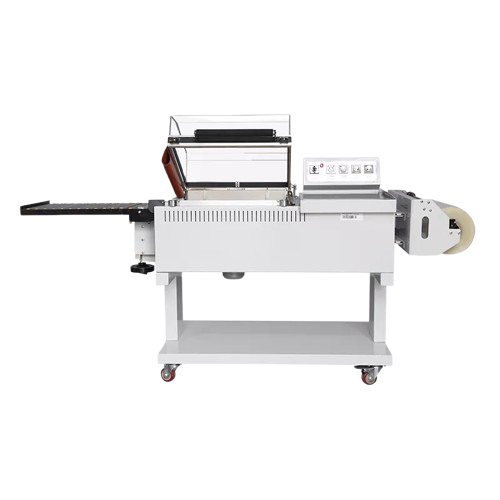

Shrink Chamber Machine GPS - BSF 5540 (Hualian)
Technical Specification:
| Model | GPS - BSF 5540 |
| Voltage (V/Hz) | AC 220/50 |
| Power (Kw) | 4 |
| Packing Speed (pcs/h) | 500-800 |
| Max. Packing Size (L×W×H)(mm) | W+H < 450 ，W < 380，L < 500，H < 100 |
| Max. Sealing & Cutting Size (L×W×H)(mm) | 550×400 |
| External Dimensions (L×W×H)(mm) | 1380×690×1065 |
| Net Weight (Kg) | 125 |

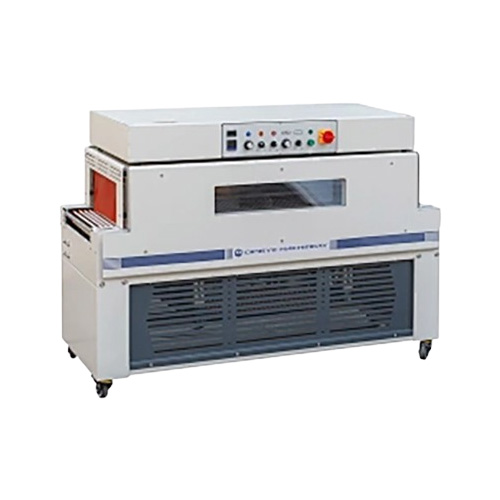

Thermal Shrink Packaging Machine GPS - DSC4525L (Dingye)
Technical Specification:
| Model | GPS - DSC4525L |
| Power source | 220V 50-60Hz |
| Power | 11.70KW |
| Conveyor speed | 0 - 12m/min |
| Tunnel size(LxWxH) | 1500x450x 250mm |
| Conveyor loading | 10kg |
| Machine size (LxWxH) | 1800x703x 1260mm |

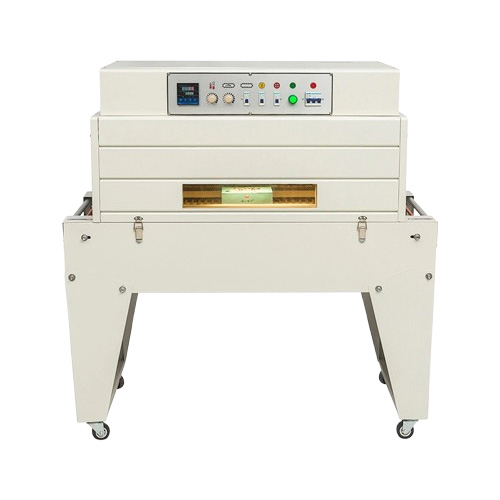

Thermal Shrink Packaging Machine GPS - DSA4525 (Dingye)
Technical Specification:
| Model | GPS - DSA4525 |
| Power source | 220V 50-60Hz |
| Power | 8.5KW |
| Conveyor speed | 0 -10m /min |
| Tunnel size(LxWxH) | 1000x450x 250mm |
| Conveyor loading | 5kg |
| Machine size (LxWxH) | 1260 x 670x 1290mm |

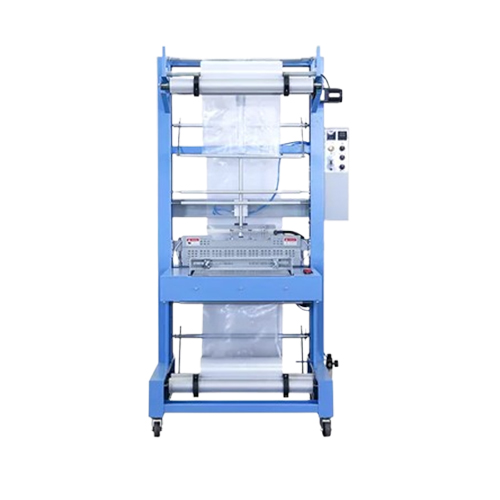

Web Sealer Model GPS-TF6540SA
Technical Specification:
| MODEL | TF-6540SA |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Air Pressure Required (kg/cm³) | 5-7 |
| Power (kw) | 1.5 |
| Max. Packing Size (L×W×H) (mm) | 550×400×380 |
| Max. Sealing Length (mm) | 650 |
| External Dimension (L×W×H) (mm) | 925×1040×1920 |
| Net Weight (kg) | 300 |
